Description:Support is limited to customers who have already adopted these products.The ISL6322 four-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding fe
The recommended PCB layout for the ISL6322CRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
The selection of external components for the ISL6322CRZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. Renesas provides a component selection guide in the datasheet, which can be used to determine the suitable component values. Additionally, online tools and simulation software can be used to simulate the design and optimize the component selection.
The thermal derating curve for the ISL6322CRZ is provided in the datasheet, which shows the maximum output current that can be delivered at different ambient temperatures. The curve indicates that the maximum output current decreases as the ambient temperature increases, due to the thermal limitations of the device. Engineers should ensure that the device is operated within the recommended temperature range to maintain the maximum output current.
The ISL6322CRZ has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be adjusted by selecting the appropriate resistor value. Additionally, short-circuit protection can be implemented by monitoring the output voltage and current, and shutting down the device in case of a fault condition.
The recommended start-up sequence for the ISL6322CRZ involves applying the input voltage (VIN) before enabling the device (EN pin). This ensures that the internal voltage regulators are properly initialized, and the device starts up in a stable state. Improper start-up sequencing can lead to device malfunction or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6322CRZ Overview

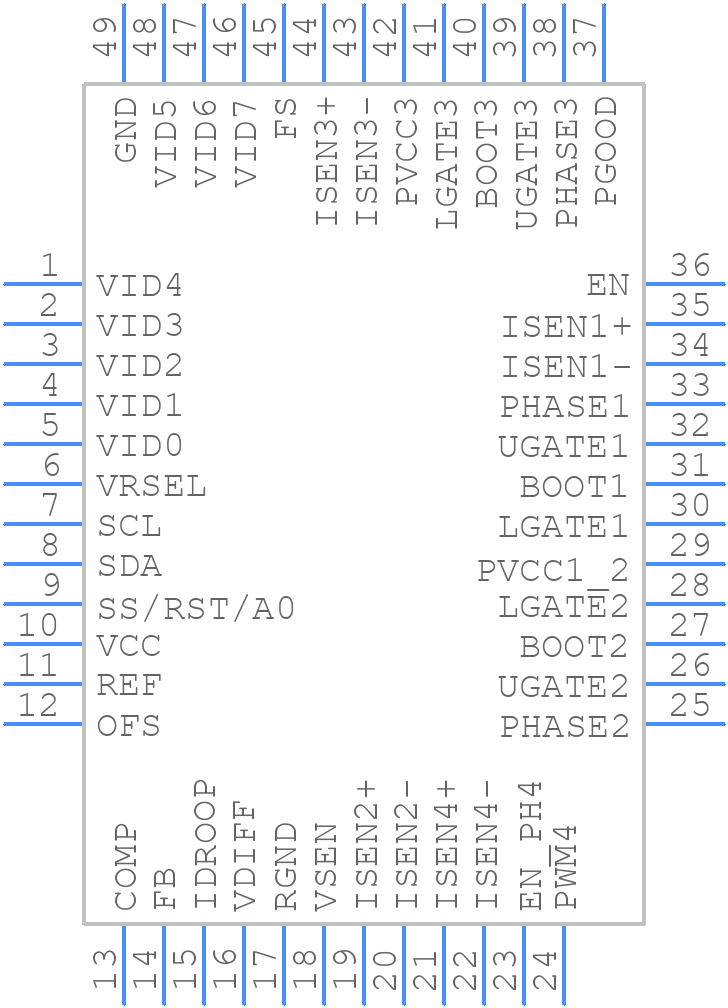

Use the download button to access the ISL6322CRZ schematic symbol, PCB footprint, and 3D model.
