Description:Support is limited to customers who have already adopted these products.The ISL6322 four-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. One outstanding fe
The recommended PCB layout for the ISL6322IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX pin) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To select the right inductor for the ISL6322IRZ, consider the following factors: inductance value, DC resistance, saturation current, and physical size. A good starting point is to choose an inductor with an inductance value between 1µH to 10µH, a DC resistance less than 1 ohm, and a saturation current greater than the peak current of the converter.
The maximum junction temperature of the ISL6322IRZ is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the ISL6322IRZ can be used in a synchronous buck converter configuration. In this configuration, the internal high-side switch is used in conjunction with an external low-side switch to achieve higher efficiency and lower losses.
The ISL6322IRZ requires a compensation network to ensure stability. A type-II compensation network is recommended, which consists of a series resistor and capacitor connected to the COMP pin. The values of the compensation components depend on the specific application and can be determined using the datasheet's compensation design guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6322IRZ Overview

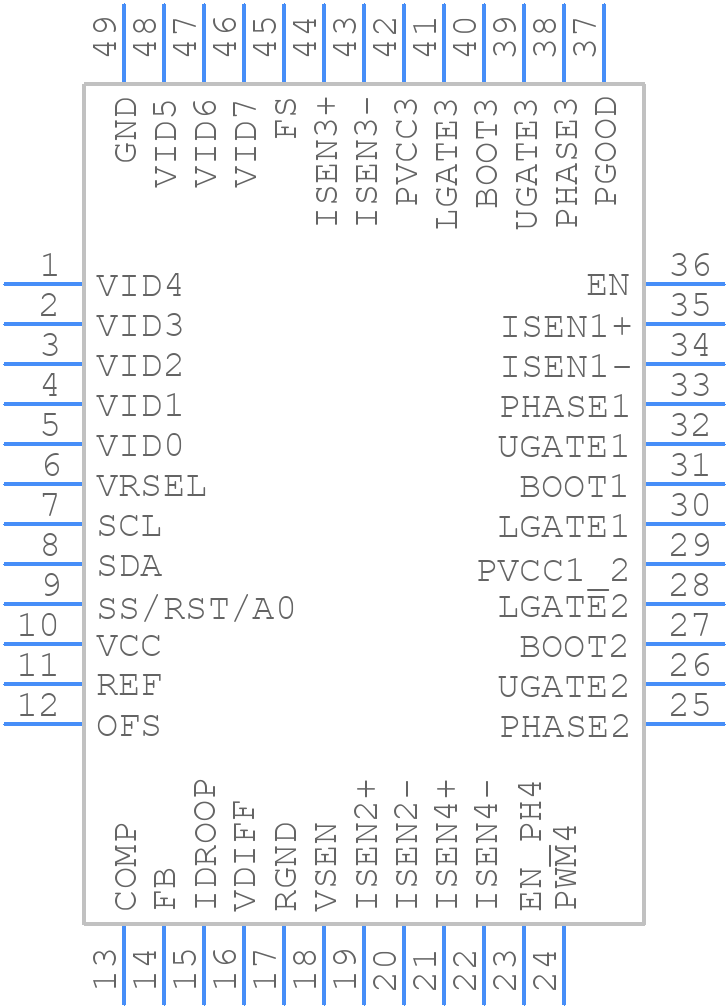

Use the download button to access the ISL6322IRZ schematic symbol, PCB footprint, and 3D model.
