Description:Support is limited to customers who have already adopted these products.The ISL6326 controls microprocessor core voltage regulation by driving up to 4 synchronous-rectified buck channels in parallel. Multiphase buck converter architecture uses interleaved timing to multiply channel ripple frequency and reduce input and output ripple currents. Lower ripple results in fewer components, lower component cost, reduced power dissipation, and smaller implementation area. Microprocessor loads can generate load tran
The recommended PCB layout for the ISL6326CRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX pin) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To select the right inductor for the ISL6326CRZ, consider the following factors: inductance value, DC resistance, saturation current, and core material. A good starting point is to use an inductor with an inductance value between 1µH to 4.7µH, a DC resistance less than 100mΩ, and a saturation current greater than the peak current of the converter.
The maximum junction temperature (TJ) that the ISL6326CRZ can operate at is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the ISL6326CRZ is rated for operation up to 125°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications according to the ambient temperature.
To troubleshoot the ISL6326CRZ, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the switching waveforms and identify any anomalies.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6326CRZ Overview

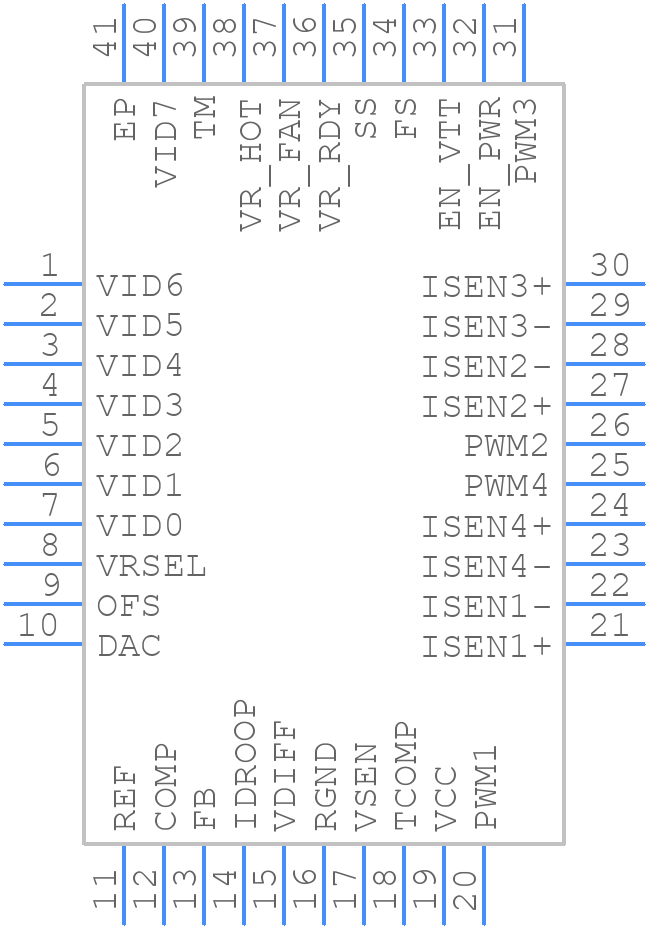

Use the download button to access the ISL6326CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
