Description:The ISL6334, ISL6334A control microprocessor core voltage regulation by driving up to 4 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates and requires high efficiency at light load. T
The recommended PCB layout for the ISL6334CRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6334CRZ depends on the specific application requirements, such as output voltage, output current, and switching frequency. A good starting point is to use the component values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also recommended to use a component selection tool or consult with a Renesas application engineer for guidance.
The maximum ambient temperature that the ISL6334CRZ can operate at is 105°C, with a junction temperature of up to 125°C. However, it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
The ISL6334CRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OC pin to the GND pin. The value of the resistor determines the overcurrent threshold. Additionally, the ISL6334CRZ also has a hiccup mode that can be enabled to limit the output current during an overcurrent condition.
Yes, the ISL6334CRZ can be used in a synchronous buck converter configuration, which can improve efficiency and reduce power losses. However, it requires additional external components, such as a synchronous rectifier and a driver IC, and careful design and layout to ensure proper operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6334CRZ Overview

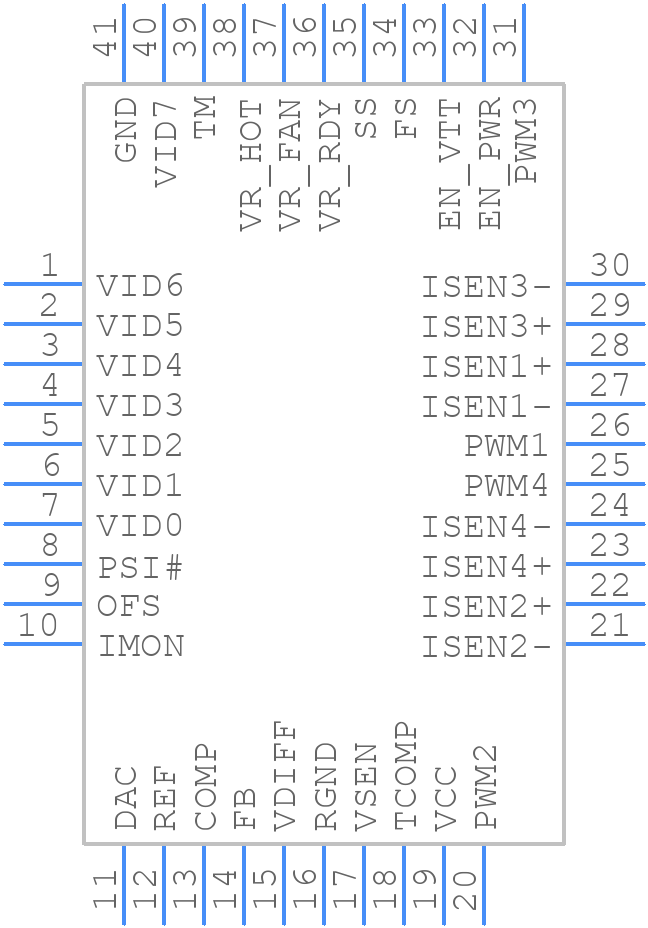

Use the download button to access the ISL6334CRZ schematic symbol, PCB footprint, and 3D model.
