Description:The ISL6334D controls voltage regulator by driving up to 4 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates and requires high efficiency at light load. The ISL6334D utilizes Intersil
Renesas provides a recommended PCB layout in the ISL6334 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas provides a compensation design tool and guidelines in the ISL6334 datasheet and application notes, which can help engineers optimize the compensation network for their specific application. Additionally, Renesas' technical support team can provide further guidance and support.
While the datasheet specifies the recommended input voltage range, the maximum allowed input voltage ripple is not explicitly stated. According to Renesas, the ISL6334 can tolerate up to 10% input voltage ripple without affecting its performance or reliability.
Yes, the ISL6334 is rated for operation up to 125°C junction temperature. However, engineers should ensure that the device is properly derated for high-temperature operation and that the PCB and surrounding components can also withstand the elevated temperatures.
Renesas provides troubleshooting guidelines and application notes that can help engineers identify and resolve common issues such as oscillations or instability. Additionally, Renesas' technical support team can provide further guidance and support to help engineers debug their designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6334DIRZ-T Overview

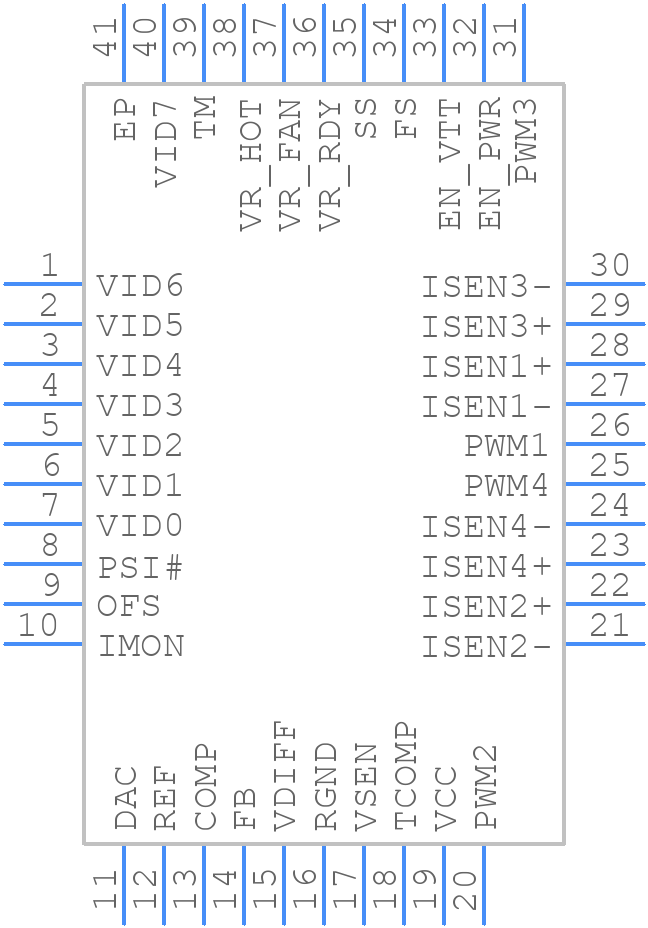

Use the download button to access the ISL6334DIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
