Description:The ISL6334, ISL6334A control microprocessor core voltage regulation by driving up to 4 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation and smaller implementation area. Microprocessor loads can generate load transients with extremely fast edge rates and requires high efficiency at light load. T
The recommended PCB layout for the ISL6334IRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6334IRZ depends on the specific application requirements, such as output voltage, output current, and switching frequency. A good starting point is to use the component values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also recommended to use a component selection tool or consult with a experienced engineer to ensure the correct selection.
The maximum ambient temperature that the ISL6334IRZ can operate at is 105°C, but this can be derated based on the specific application requirements and the thermal design of the system. It's recommended to consult the datasheet and the thermal design guidelines to ensure the device operates within the recommended temperature range.
To troubleshoot issues with the ISL6334IRZ, it's recommended to follow a systematic approach, starting with checking the input voltage, output voltage, and output current. Then, check the component values, PCB layout, and thermal design to ensure they meet the recommended specifications. Use oscilloscopes and other measurement tools to identify any anomalies or issues, and consult the datasheet and application notes for guidance.
Yes, the ISL6334IRZ can be used in high-reliability or high-availability applications, but it's recommended to follow the recommended design guidelines and to consult with a experienced engineer to ensure the device is used within its recommended specifications. Additionally, it's recommended to implement redundancy, fault detection, and fault tolerance mechanisms to ensure the system meets the required reliability and availability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6334IRZ Overview

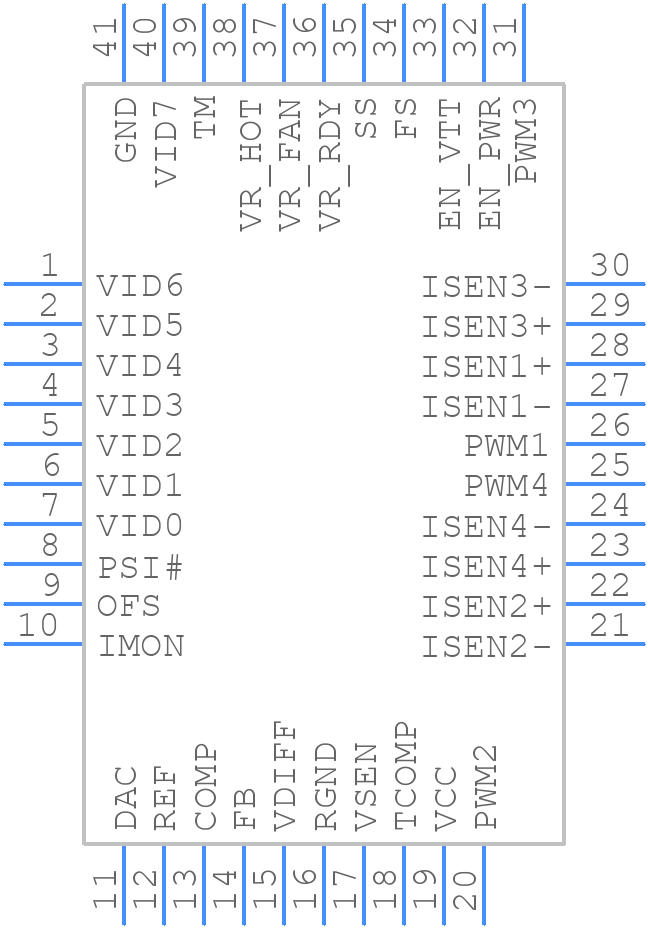

Use the download button to access the ISL6334IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
