ISL6336DIRZ-T - Renesas Electronics

Description: The ISL6336D controls voltage regulators by driving up to 6 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation, and smaller implementation area. The ISL6336D utilizes Intersil’s proprietary Active Pulse Positioning (APP), Adaptive Phase Alignment (APA) modulation scheme, active phase adding and dr

Download ISL6336DIRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

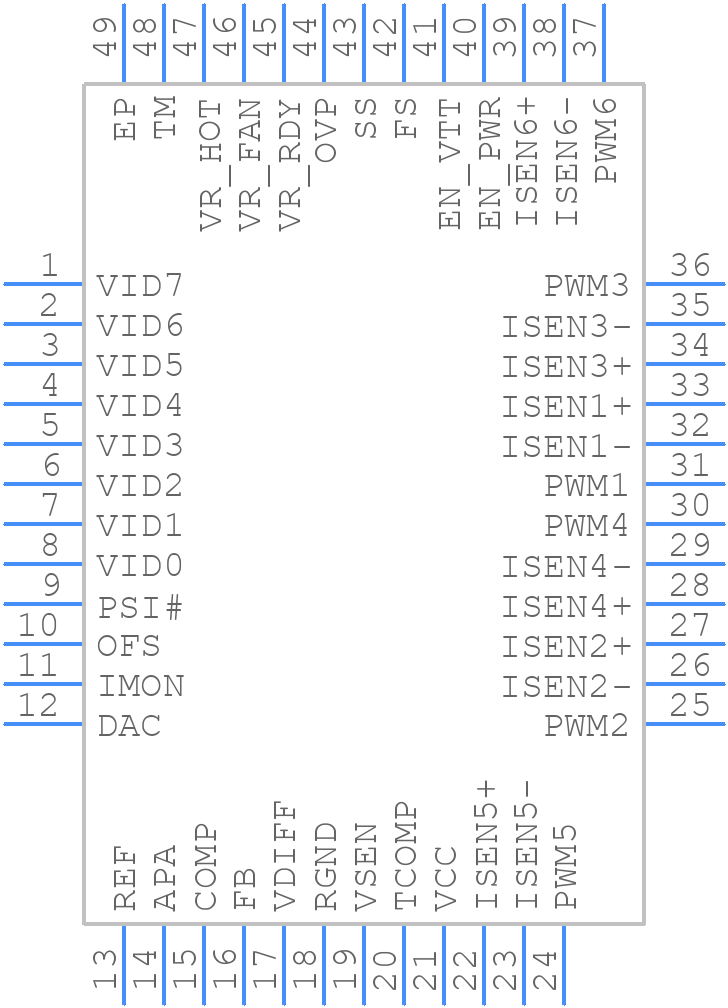

ISL6336DIRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6336DIRZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Ld 7x7 QFN-----
click to zoom
3D Models
ISL6336DIRZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - 48 Ld 7x7 QFN-----
click to zoom

ISL6336DIRZ-T Details

  • Manufacturer Part Number:

    ISL6336DIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    L48.7X7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    SWITCHING FREQ GIVEN PER PHASE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ISL6336DIRZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL6336 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • Renesas provides a compensation design tool and guidelines in the ISL6336 datasheet and application notes, which can help engineers optimize the compensation network for their specific application. Additionally, Renesas' technical support team can provide further guidance and support.
  • Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output capacitors. The datasheet provides more detailed guidelines on capacitor selection, including recommended vendors and part numbers.
  • The ISL6336 has a power-good output (PGOOD) that indicates when the output voltage is within regulation. Engineers can use this signal to ensure the device is properly powered up and configured during startup. Additionally, the datasheet provides guidelines on power-up sequencing and configuration.
  • The thermal shutdown temperature for the ISL6336 is typically 150°C, with a hysteresis of 25°C. This means the device will shut down when the junction temperature reaches 150°C and will not restart until the temperature drops to 125°C.
