Description:The ISL6336D controls voltage regulators by driving up to 6 interleaved synchronous-rectified buck channels in parallel. This multiphase architecture results in multiplying channel ripple frequency and reducing input and output ripple currents. Lower ripple results in fewer components, lower cost, reduced power dissipation, and smaller implementation area. The ISL6336D utilizes Intersil’s proprietary Active Pulse Positioning (APP), Adaptive Phase Alignment (APA) modulation scheme, active phase adding and dr
Renesas provides a recommended PCB layout in the ISL6336 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas provides a compensation calculator tool that helps designers optimize the compensation network based on their specific application requirements, including output voltage, output current, and input voltage range.
While the datasheet specifies a maximum input voltage of 28V, the maximum allowed input voltage ripple is not explicitly stated. According to Renesas, the recommended input voltage ripple is less than 1V to ensure stable operation and prevent damage to the device.
Yes, the ISL6336 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may be affected at high temperatures, and designers should consult the datasheet and application notes for guidance on thermal management and derating.
Renesas provides a troubleshooting guide in the ISL6336 application note, which includes steps to identify and resolve common issues, such as oscillations, instability, and output voltage errors. Designers can also consult the Renesas support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6336DIRZ Overview

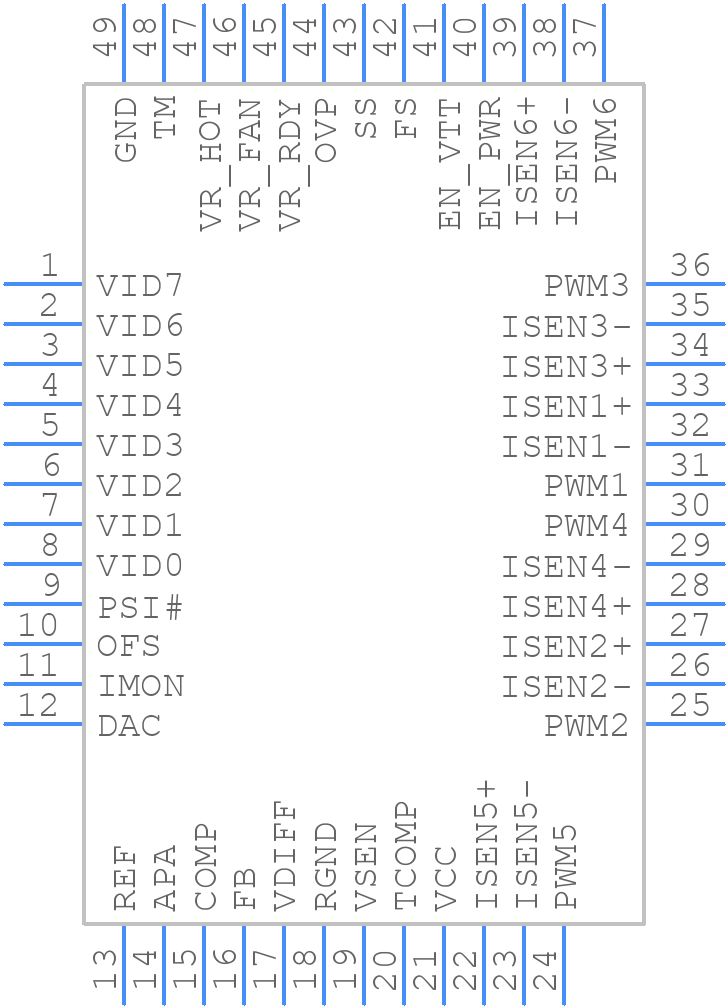

Use the download button to access the ISL6336DIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
