ISL6341AIRZ - Renesas Electronics

Description: The ISL6341, ISL6341A, ISL6341B, ISL6341C makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one family of IC's can be used in a wide variety of applications within a system. It integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 10 Ld Thin DFN package. The ISL6341, ISL6341A, ISL6341B

Download ISL6341AIRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

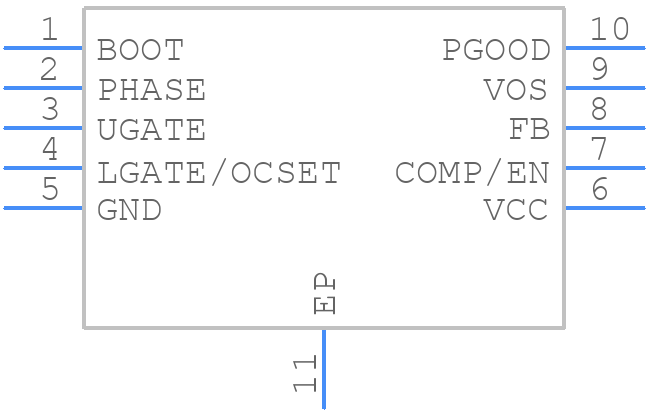

ISL6341AIRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6341AIRZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.3x3B__
click to zoom
3D Models
ISL6341AIRZ - Renesas Electronics - 3D model - Small Outline No-lead - L10.3x3B__
click to zoom

ISL6341AIRZ Details

  • Manufacturer Part Number:

    ISL6341AIRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14.4 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    14.4 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    660 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6341AIRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1443, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure reliable operation.
  • The selection of input and output capacitors depends on the specific application requirements. Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The application note AN1443 provides more detailed guidance on capacitor selection.
  • The ISL6341AIRZ has an operating temperature range of -40°C to +85°C. However, the device can be operated up to +100°C with derating. Refer to the datasheet for more information on thermal derating.
  • The ISL6341AIRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The application note AN1443 provides more information on how to implement overcurrent protection.
  • The recommended input voltage range for the ISL6341AIRZ is 4.5V to 14V. However, the device can operate with input voltages as low as 3.3V with reduced performance. Refer to the datasheet for more information on input voltage range and performance.
