Description:The ISL6353 is a three-phase PWM buck regulator controller for VR12 DDR memory applications. The multi-phase implementation results in better system performance, superior thermal management, lower component cost and smaller PCB area. The ISL6353 has two integrated power MOSFET drivers for implementing a cost effective and space saving power management solution. The PWM modulator of the ISL6353 is based on Renesas' Robust Ripple Regulator™ (R3) technology. Compared with the traditional multi-phase buck regul
Renesas provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielded cables for sensitive signals.
The selection of input and output capacitors depends on the specific application requirements, such as output voltage, output current, and ripple requirements. Renesas provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
The maximum ambient temperature range for the ISL6353IRTZ-T is -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability.
Renesas provides a troubleshooting guide in the datasheet, which includes steps to identify and resolve common issues. Additionally, it's recommended to use oscilloscopes and other diagnostic tools to measure voltage and current waveforms, and to consult with Renesas support engineers if necessary.
Yes, the ISL6353IRTZ-T is compatible with lead-free soldering processes, but it's recommended to follow Renesas' guidelines for lead-free soldering to ensure reliability and avoid damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6353IRTZ-T Overview

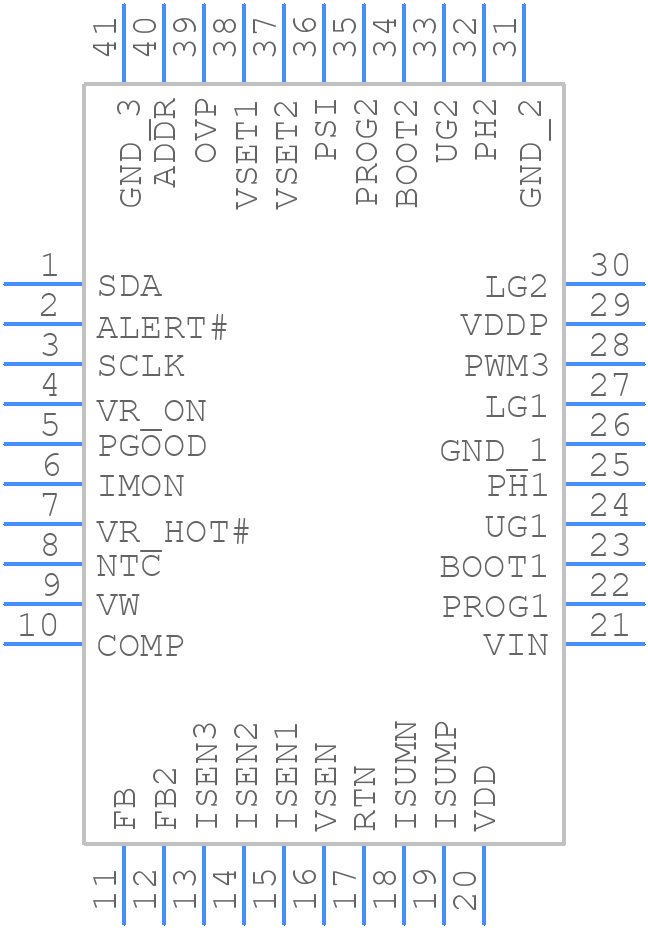

Use the download button to access the ISL6353IRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
