Description:The ISL6376 is an EAPP Hybrid Digital 6-Phase PWM controller and is designed to be compliant to Intel VR12. 5/VR12 specifications and control the microprocessor core or memory voltage regulator. It includes programmable functions and telemetries for easy use, high system flexibility and overclocking applications using SMBus, PMBus, or I2C interface, which is designed to be conflict free with CPU’s SVID bus. This hybrid digital approach eliminates the need of NVM and Firmware often seen in a full digital sol
Renesas provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using a 4-layer stack-up with a power plane and a ground plane.
The output filter components should be selected based on the output voltage, output current, and switching frequency. Renesas provides a component selection guide in the datasheet, but it's also recommended to use online tools or simulation software to optimize the component selection.
The maximum junction temperature of the ISL6376IRZ-TK is 125°C, but it's recommended to keep the junction temperature below 100°C for optimal reliability and performance.
The ISL6376IRZ-TK has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values.
The ISL6376IRZ-TK is rated for operation up to 105°C, but it's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Renesas provides a thermal derating curve in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6376IRZ-TK Overview

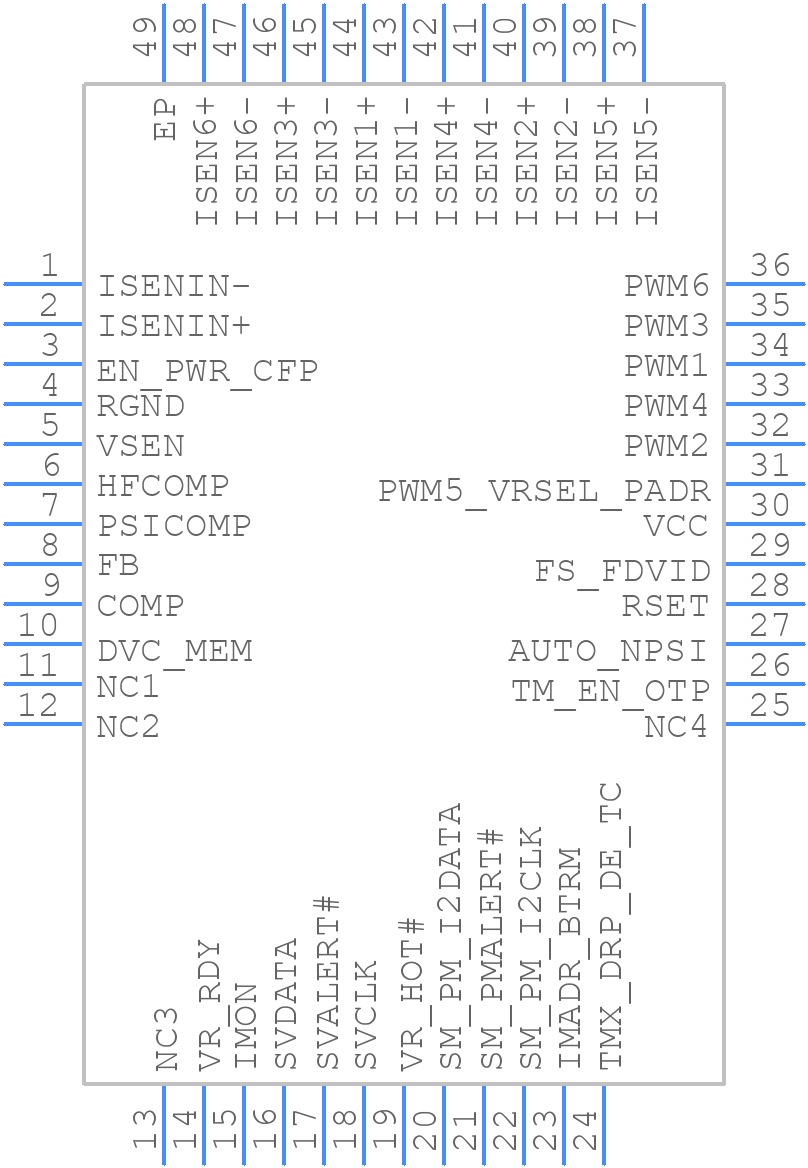

Use the download button to access the ISL6376IRZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL63,
or try a keyword search, such as Switching Regulator or Controllers
