Description:The ISL6420B simplifies the implementation of a complete control and protection scheme for a high-performance DC/DC buck converter. It is designed to drive N-Channel MOSFETs in a synchronous rectified buck topology. The ISL6420B integrates control, output adjustment, monitoring and protection functions into a single package. Additionally, the IC features an external reference voltage tracking mode for externally referenced buck converter applications and DDR termination supplies, as well as a voltage margin
The recommended PCB layout for the ISL6420BIRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the ISL6420BIRZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. Renesas provides a component selection guide in the datasheet, which can be used to determine the suitable values for the inductor, output capacitors, and other components. Additionally, online tools and simulation software can be used to optimize the component selection.
The ISL6420BIRZ can operate at ambient temperatures up to 105°C, but the maximum junction temperature (TJ) should not exceed 125°C. It's recommended to ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation.
The ISL6420BIRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor and a capacitor. The overcurrent threshold can be set by selecting the appropriate resistor value. Additionally, the device has a hiccup mode that can be enabled to prevent damage from repeated overcurrent events.
Yes, the ISL6420BIRZ can be used in a synchronous buck converter configuration, which can improve efficiency and reduce power losses. However, this requires additional external components, such as a synchronous rectifier and a driver IC, and careful design and layout to ensure proper operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6420BIRZ Overview

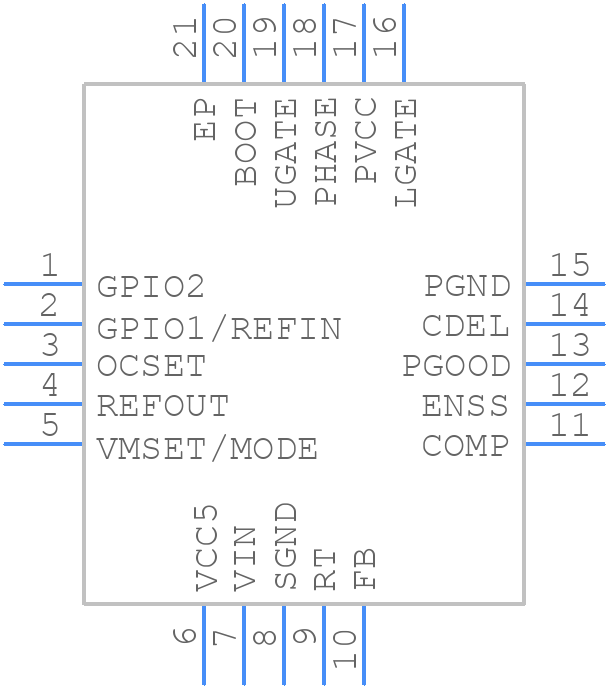

Use the download button to access the ISL6420BIRZ schematic symbol, PCB footprint, and 3D model.
