Description:The ISL6440 is a high-performance, dual-output PWM controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications. Each output is adjustable down to 0. 8V. The two PWMs are synchronized 180o out of phase reducing the RMS input current and ripple voltage. The ISL6440 incorporates several protection features. An adjustable overcurrent protection circuit monitors the output current by sensing th
The recommended layout and placement for the ISL6440IAZ-TK can be found in the application note AN1325 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The selection of input and output capacitors for the ISL6440IAZ-TK depends on the specific application requirements. Renesas provides a capacitor selection guide in the datasheet, which recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Additionally, the application note AN1325 provides more detailed guidance on capacitor selection and placement.
The maximum ambient temperature range for the ISL6440IAZ-TK is -40°C to +85°C. However, the device can operate up to +125°C junction temperature. It's essential to ensure proper thermal management and heat sinking to maintain the device within its recommended operating temperature range.
Renesas provides a troubleshooting guide in the application note AN1325, which covers common issues and their solutions. Additionally, the datasheet provides a list of possible causes and solutions for output voltage instability and overheating. It's also recommended to consult the Renesas support team or a qualified engineer for further assistance.
Yes, the ISL6440IAZ-TK is compatible with lead-free soldering processes. Renesas ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6440IAZ-TK Overview

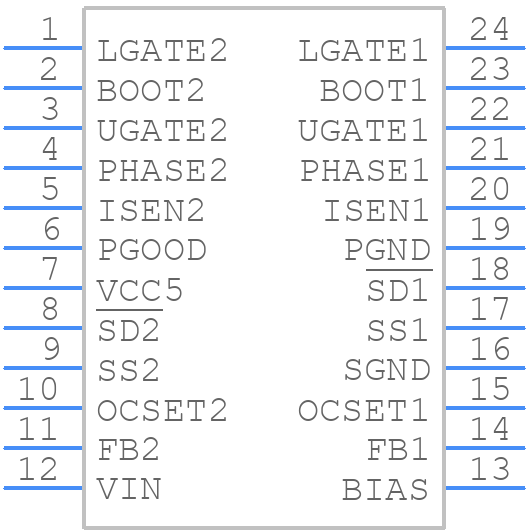

Use the download button to access the ISL6440IAZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL64,
or try a keyword search, such as Switching Regulator or Controllers
