Description:The ISL6440 is a high-performance, dual-output PWM controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications. Each output is adjustable down to 0. 8V. The two PWMs are synchronized 180o out of phase reducing the RMS input current and ripple voltage. The ISL6440 incorporates several protection features. An adjustable overcurrent protection circuit monitors the output current by sensing th
The recommended layout and placement for the ISL6440IAZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. Additionally, it is recommended to place the IC away from noise sources and to use shielding or filtering to reduce EMI.
To ensure the ISL6440IAZ operates within its safe operating area, monitor the input voltage, output current, and junction temperature. Ensure the device is properly heatsinked, and the thermal resistance (RθJA) is within the recommended range. Also, follow the recommended PCB layout and thermal design guidelines.
When selecting input and output capacitors for the ISL6440IAZ, consider the voltage rating, capacitance value, equivalent series resistance (ESR), and ripple current rating. Choose capacitors with low ESR and high ripple current ratings to minimize voltage ripple and ensure reliable operation.
To troubleshoot and debug issues with the ISL6440IAZ, use a systematic approach to identify the root cause. Check the input voltage, output voltage, and current waveforms using an oscilloscope. Verify the PCB layout and component values match the recommended design. Consult the datasheet and application notes for guidance on troubleshooting common issues.
The ISL6440IAZ is a high-performance, high-current buck regulator with a wide input voltage range and high efficiency. Compared to other similar products, it offers a unique combination of high current capability, low voltage dropout, and high switching frequency. Consult the datasheet and product comparison tables to determine the best fit for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6440IAZ Overview

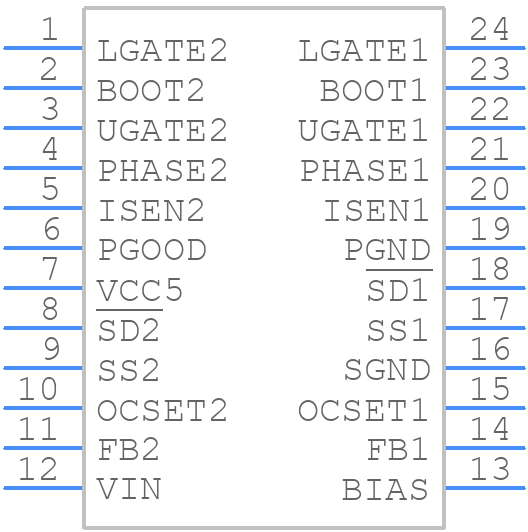

Use the download button to access the ISL6440IAZ schematic symbol, PCB footprint, and 3D model.
