Description:The ISL6446 is a high-performance, triple output controller that provides a single high-frequency power solution primarily for broadband, DSL and networking applications. This device integrates complete control, monitoring and protection functions for two synchronous buck PWM controllers and one linear controller. Input voltage ripple and total RMS input current is substantially reduced by synchronized 180° out-of-phase operation of the two PWMs. The two PWM buck converters provide simple voltage mode contr
Renesas provides a recommended PCB layout guide in the application note AN1443, which can be found on the Renesas website. The guide provides detailed information on component placement, thermal management, and routing guidelines to ensure optimal performance and reliability.
Renesas provides a component selection guide in the datasheet, which includes recommended values for input and output capacitors, inductors, and other external components. Additionally, Renesas offers a web-based component selection tool, called the 'PowerNavigator', which can help designers select the optimal external components for their specific requirements.
The ISL6446IAZ-T is rated for operation from -40°C to 125°C (TJ), but the maximum operating temperature range may be limited by the specific application and the thermal design of the system. Renesas provides thermal design guidelines and thermal models in the datasheet and application notes to help designers estimate the maximum operating temperature range for their specific application.
The ISL6446IAZ-T has a built-in overcurrent protection (OCP) feature, which can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. Renesas provides detailed information on how to implement OCP in the application note AN1443.
Renesas recommends a specific start-up sequence to ensure proper operation of the ISL6446IAZ-T. The recommended sequence is: 1) Apply input voltage, 2) Enable the device by pulling the EN pin high, and 3) Wait for the soft-start period to complete. Renesas provides detailed information on the start-up sequence in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6446IAZ-T Overview

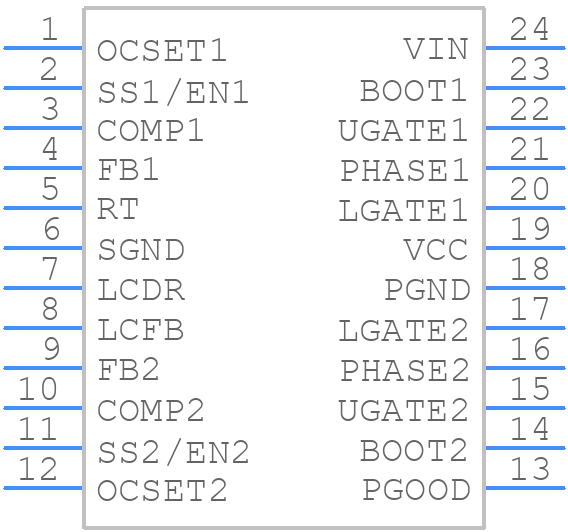

Use the download button to access the ISL6446IAZ-T schematic symbol, PCB footprint, and 3D model.
