Description:The ISL6522B provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous rectified buck topology. The ISL6522B integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter can be precisely regulated to as low as 0. 8V, with a maximum tolerance of ±1% over temperature and line voltage variations. The I
The recommended PCB layout for the ISL6522BIRZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6522BIRZ-T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. A good starting point is to use a 10uF to 22uF ceramic capacitor for the input and a 22uF to 47uF ceramic capacitor for the output.
The maximum ambient temperature range for the ISL6522BIRZ-T is -40°C to +85°C. However, the device can operate up to +125°C junction temperature. It's recommended to derate the device's performance at high temperatures to ensure reliable operation.
The ISL6522BIRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor divider network sets the overcurrent threshold, and when the output current exceeds this threshold, the device will shut down to prevent damage. The recommended value for the OCSET resistor is 1kΩ to 10kΩ.
Yes, the ISL6522BIRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's recommended to follow the specific qualification and testing requirements for the target application to ensure the device meets the necessary standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6522BIRZ-T Overview

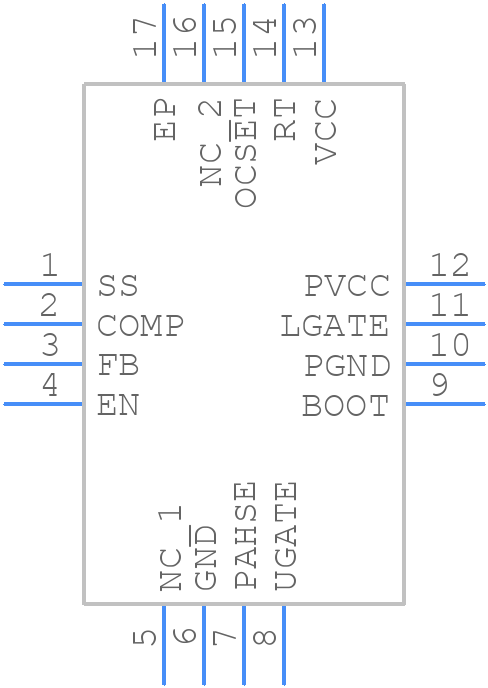

Use the download button to access the ISL6522BIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
