Description:Support is limited to customers who have already adopted these products.The ISL6524 provides the power control and protection for four output voltages in high-performance microprocessor and computer applications. The IC integrates one PWM controller and three linear controllers, as well as the monitoring and protection functions into a 28-pin SOIC package. The PWM controller regulates the microprocessor core voltage with a synchronous-rectified buck converter. One linear controller supplies the computer sys
The recommended layout and placement for the ISL6524CBZ involves placing the IC close to the input capacitors, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it is recommended to place the output capacitors close to the output pins and to use a Kelvin connection for the output voltage sense pins.
To optimize the compensation network for the ISL6524CBZ, you need to consider the output capacitor value, ESR, and ESL, as well as the inductor value and DCR. A good starting point is to use the recommended values in the datasheet and then adjust them based on the specific application requirements and performance metrics such as stability, transient response, and output voltage ripple.
The maximum allowed input voltage ripple for the ISL6524CBZ is not explicitly stated in the datasheet, but it is generally recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent oscillations.
Yes, the ISL6524CBZ can be used in a synchronous rectification configuration, which can improve efficiency and reduce heat generation. However, this requires additional external components and careful design consideration to ensure proper operation and prevent shoot-through currents.
To troubleshoot common issues with the ISL6524CBZ, start by checking the input voltage, output voltage, and current waveforms using an oscilloscope. Verify that the component values and layout meet the recommended specifications. Check for signs of overheating, and ensure that the thermal design is adequate. If the issue persists, consult the datasheet and application notes for guidance, or contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6524CBZ Overview

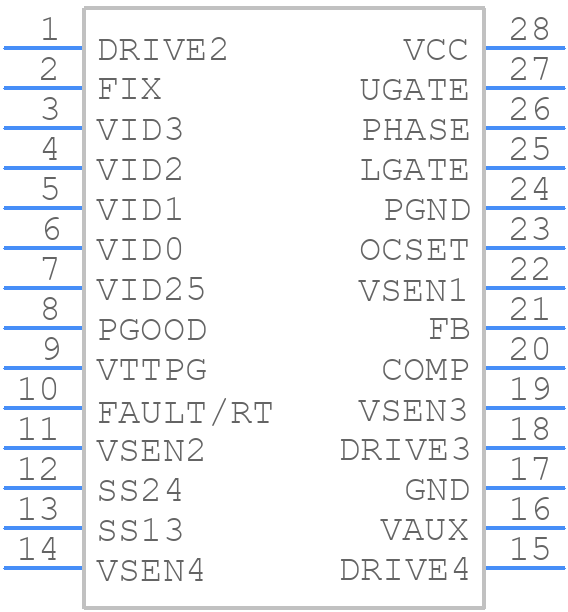

Use the download button to access the ISL6524CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
