Description:The ISL6526, ISL6526A make simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter. Designed to drive N-Channel MOSFETs in a synchronous buck topology, the ISL6526, ISL6526A integrate the control, output adjustment, monitoring and protection functions into a single package. The ISL6526, ISL6526A provide simple, single feedback loop, voltage-mode control with fast transient response. The output voltage can be precisely regulated to as low as 0. 8V, with a maxim
The recommended layout and placement for the ISL6526AIRZ can be found in the application note AN1143 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The selection of input and output capacitors for the ISL6526AIRZ depends on the specific application requirements. Renesas provides a capacitor selection guide in the datasheet, which recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Additionally, the application note AN1143 provides more detailed guidance on capacitor selection and placement.
The maximum ambient temperature range for the ISL6526AIRZ is -40°C to +85°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the thermal management guidelines in the application note AN1143 should be followed to ensure reliable operation.
The ISL6526AIRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The application note AN1143 provides a detailed example of how to implement overcurrent protection, including the calculation of the OCSET resistor values.
The recommended startup sequence for the ISL6526AIRZ is to first apply the input voltage, then the enable signal (EN), and finally the clock signal (CLK). This sequence ensures that the device powers up correctly and avoids any potential latch-up or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6526AIRZ Overview

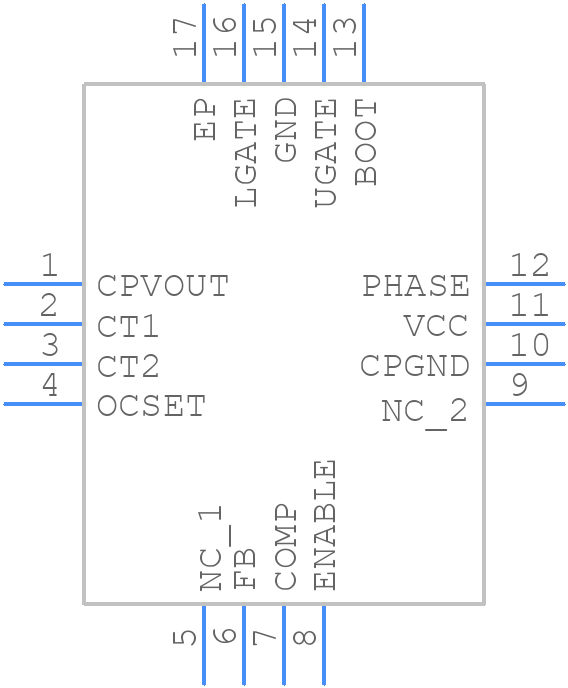

Use the download button to access the ISL6526AIRZ schematic symbol, PCB footprint, and 3D model.
