Description:The ISL6526, ISL6526A make simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter. Designed to drive N-Channel MOSFETs in a synchronous buck topology, the ISL6526, ISL6526A integrate the control, output adjustment, monitoring and protection functions into a single package. The ISL6526, ISL6526A provide simple, single feedback loop, voltage-mode control with fast transient response. The output voltage can be precisely regulated to as low as 0.8V, with a maximu
The recommended layout and placement for the ISL6526IRZ involves placing the IC close to the input capacitors, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to place the output capacitors close to the output pins and to use a Kelvin connection for the output voltage sense pins.
To optimize the compensation network for the ISL6526IRZ, you need to consider the output capacitor's ESR, the inductor's DCR, and the desired crossover frequency. A good starting point is to use the recommended values in the datasheet and then adjust them based on the specific application's requirements and the results of stability analysis.
The maximum allowed input voltage ripple for the ISL6526IRZ is not explicitly stated in the datasheet, but it's generally recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure stable operation and prevent oscillations.
Yes, you can use the ISL6526IRZ with a different inductor value than the recommended one, but you need to ensure that the inductor's saturation current rating is sufficient for the maximum output current and that the inductor's DCR is taken into account when designing the compensation network.
To troubleshoot oscillations or instability issues with the ISL6526IRZ, you should check the input voltage, output voltage, and current waveforms using an oscilloscope, and verify that the compensation network is properly designed and implemented. You should also check for any layout or component issues that may be contributing to the problem.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6526IRZ Overview

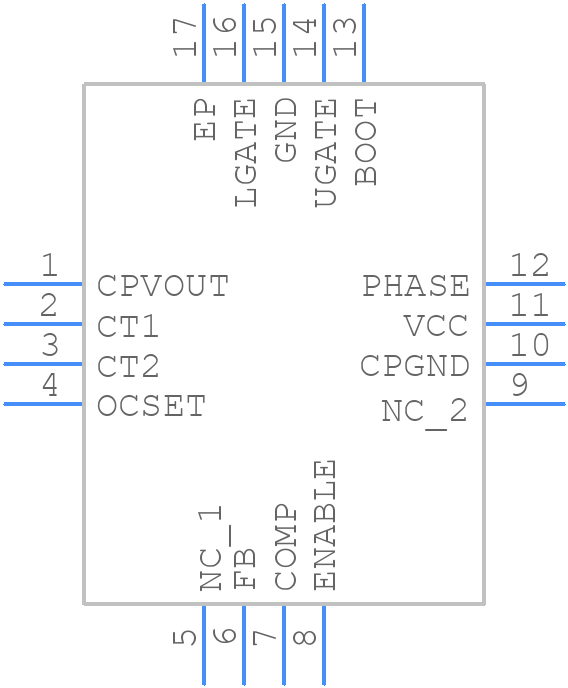

Use the download button to access the ISL6526IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
