The recommended PCB layout for the ISL6529CBZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the ISL6529CBZ-T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
The maximum ambient temperature range for the ISL6529CBZ-T is -40°C to +85°C. However, the device can operate up to +125°C junction temperature. It's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
The ISL6529CBZ-T has built-in OVP and UVP features. For OVP, the device has a threshold voltage of 6.5V, and for UVP, the threshold voltage is 2.5V. To implement OVP and UVP, you can use external resistors and capacitors to set the desired threshold voltages. Additionally, you can use external voltage supervisors or microcontrollers to monitor the input voltage and shut down the device if it exceeds the specified limits.
The recommended input voltage range for the ISL6529CBZ-T is 3.3V to 5.5V. However, the device can operate from 2.7V to 6.5V, but with reduced performance and efficiency. It's recommended to operate the device within the recommended input voltage range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6529CBZ-T Overview

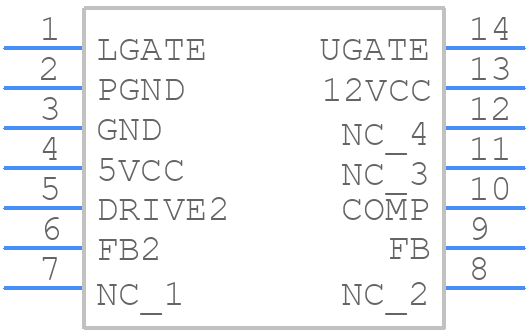

Use the download button to access the ISL6529CBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
