The recommended layout and placement for the ISL6529CBZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the high-frequency currents. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. The datasheet provides a recommended layout and placement diagram.
Optimizing the compensation network for the ISL6529CBZ involves selecting the right values for the compensation resistors and capacitors. The datasheet provides a compensation network design procedure, and the application note AN1143 provides more detailed information on compensation network design. Additionally, the ISL6529CBZ evaluation board can be used as a reference design.
The maximum input voltage that the ISL6529CBZ can handle is 28V, but the device is designed to operate with an input voltage range of 7V to 24V. Exceeding the maximum input voltage can cause damage to the device.
To ensure the ISL6529CBZ operates within its thermal limits, the device's junction temperature (TJ) should be kept below 125°C. The thermal resistance of the package (θJA) is 30°C/W, and the maximum power dissipation is 2.5W. The application note AN1143 provides more information on thermal management.
Yes, the ISL6529CBZ can be used in a synchronous rectification configuration. The device's synchronous rectification feature allows it to operate with an external FET as a synchronous rectifier, improving efficiency and reducing power losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6529CBZ Overview

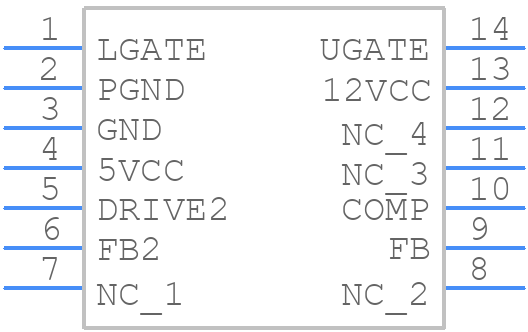

Use the download button to access the ISL6529CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
