Description:The ISL6532A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller and integrated LDO to supply VDDQ with high current during S0/S1 states and standby current during S3 state. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A buffered version of the VDDQ/2 reference is provided as VREF. An LDO controlle
The recommended layout and placement for the ISL6532ACRZ can be found in the application note AN1143 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The selection of external components such as inductors, capacitors, and resistors depends on the specific application requirements and operating conditions. Renesas provides a component selection guide in the datasheet and application notes, which can be used as a starting point. Additionally, simulation tools and online calculators can be used to optimize component selection.
The maximum junction temperature for the ISL6532ACRZ is 150°C. However, it's recommended to operate the device within a safe operating area to ensure reliability and prevent thermal shutdown. The thermal derating curves in the datasheet can be used to determine the maximum power dissipation at a given ambient temperature.
Troubleshooting issues with the ISL6532ACRZ requires a systematic approach. Start by verifying the PCB layout and component selection, then check the input and output voltage levels, and finally, use oscilloscope measurements to identify any oscillations or instability. Renesas provides troubleshooting guides and application notes that can be used to identify and resolve common issues.
Yes, the ISL6532ACRZ is compatible with lead-free soldering processes. Renesas ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes. However, it's recommended to follow the recommended soldering profile and guidelines to ensure reliable assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6532ACRZ Overview

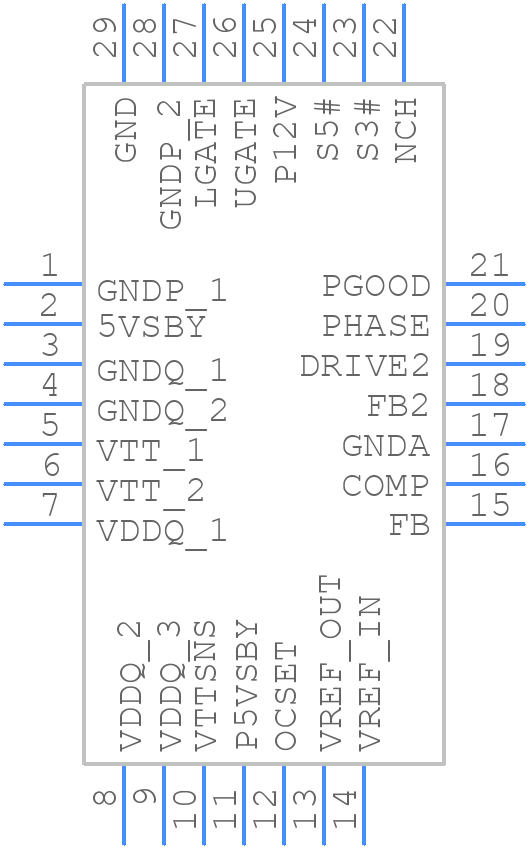

Use the download button to access the ISL6532ACRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
