Description:The ISL6532A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller and integrated LDO to supply VDDQ with high current during S0/S1 states and standby current during S3 state. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A buffered version of the VDDQ/2 reference is provided as VREF. An LDO controlle
A good PCB layout for the ISL6532AIRZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a feedback resistor with a value between 1kΩ and 10kΩ.
The ISL6532AIRZ has an operating ambient temperature range of -40°C to +85°C. However, the device can operate up to +125°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
Yes, the ISL6532AIRZ is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the ISL6532AIRZ, start by checking the input and output voltages, and ensure that the device is properly powered. Check the feedback loop and ensure that it's properly connected. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes, or contact Renesas Electronics Corporation's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6532AIRZ Overview

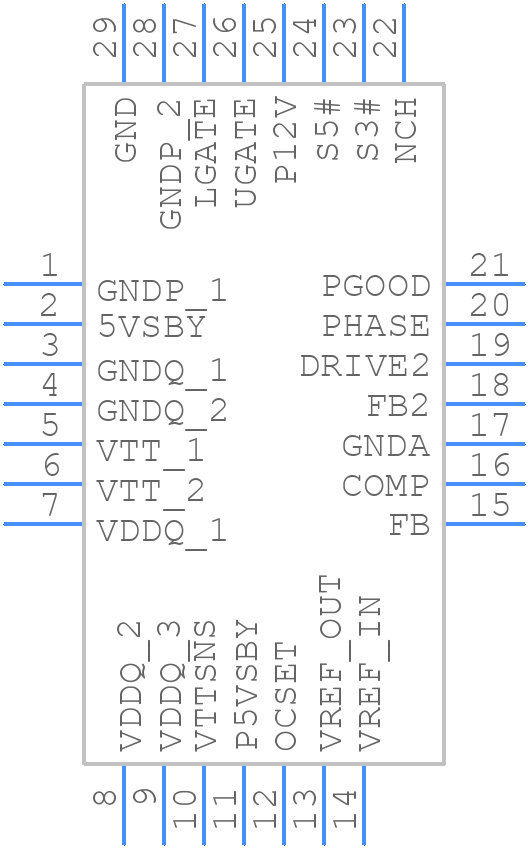

Use the download button to access the ISL6532AIRZ schematic symbol, PCB footprint, and 3D model.
