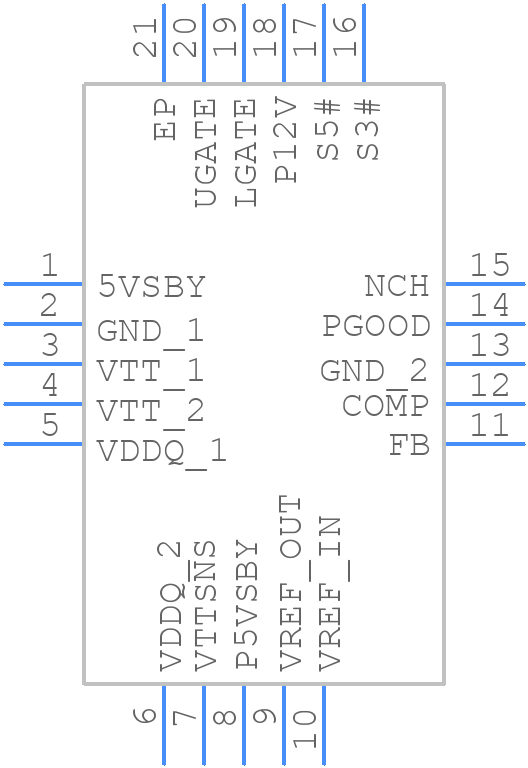

ISL6532BCRZ - Renesas Electronics

ISL6532BCRZ Details

• Manufacturer Part Number:

  ISL6532BCRZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  2017-11-16

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6.3

• Additional Feature:

  ALSO HAS DUAL OUTPUT

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  S-PQCC-N20

• Length:

  6 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.23SQ,32

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1 mm

• Supply Current-Max (Isup):

  7.25 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  280 kHz

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  6 mm
