Description:The ISL6537A provides a complete ACPI compliant power solution for up to 4 DIMM dual channel DDR/DDR2 Memory systems. Included are both a synchronous buck controller to supply VDDQ during S0/S1 and S3 states. During S0/S1 state, a fully integrated sink-source regulator generates an accurate (VDDQ/2) high current VTT voltage without the need for a negative supply. A buffered version of the VDDQ/2 reference is provided as VREF. A second PWM controller, which requires external MOSFET drivers, is available for
6 X 6 MM, ROHS COMPLIANT, PLASTIC, MO-220VJJC, QFN-28
Pin Count:
28
Manufacturer Package Code:
L28.6X6
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PQCC-N28
JESD-609 Code:
e3
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Output Current-Max:
3.3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
8 mA
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
280 kHz
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
ISL6537ACRZ-T Frequently Asked Questions (FAQs)
A good PCB layout for the ISL6537ACRZ-T involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the ISL6537ACRZ-T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input capacitor, while a 22μF to 47μF ceramic capacitor is suitable for the output capacitor.
The ISL6537ACRZ-T has an operating ambient temperature range of -40°C to +85°C, but the maximum junction temperature is 125°C. It's essential to ensure that the device does not exceed the maximum junction temperature to prevent damage or malfunction.
The ISL6537ACRZ-T has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, while a higher resistor value sets a lower overcurrent threshold.
Yes, the ISL6537ACRZ-T is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and has a high MTBF (mean time between failures) rating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6537ACRZ-T Overview

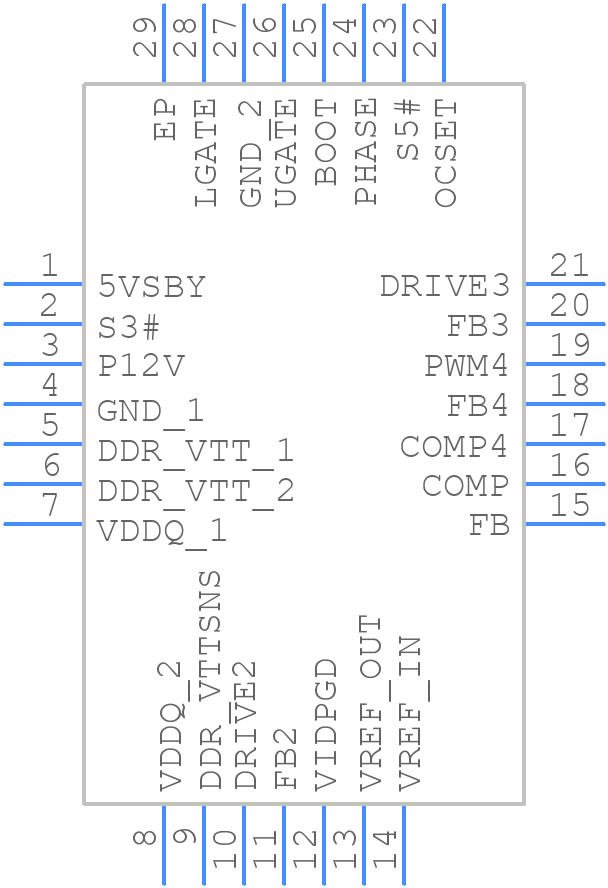

Use the download button to access the ISL6537ACRZ-T schematic symbol, PCB footprint, and 3D model.
