Description:The ISL6539 dual PWM controller delivers high efficiency and tight regulation from two voltage regulating synchronous buck DC/DC converters. It was designed especially for DDR DRAM, SDRAM, graphic chipset applications, and system regulators in high performance applications. Voltage-feed-forward ramp modulation, current mode control, and internal feedback compensation provide fast response to input voltage and output load transients. Input current ripple is minimized by channel-to-channel PWM phase shift of
A good PCB layout for the ISL6539CAZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a feedback resistor with a value between 1kΩ and 10kΩ.
The ISL6539CAZ-T can operate at ambient temperatures up to 85°C, but the junction temperature should not exceed 125°C. It's important to ensure good thermal design and heat dissipation to prevent overheating.
Yes, the ISL6539CAZ-T is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a automotive-qualified process. However, it's still important to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the ISL6539CAZ-T, start by checking the input voltage and current, and ensure that the device is properly powered. Check the output voltage and current, and verify that the feedback loop is properly connected. Use an oscilloscope to check for oscillations or noise on the output voltage. Also, check the thermal design and ensure that the device is properly heat-sinked.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6539CAZ-T Overview

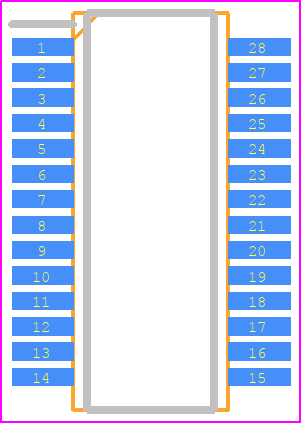

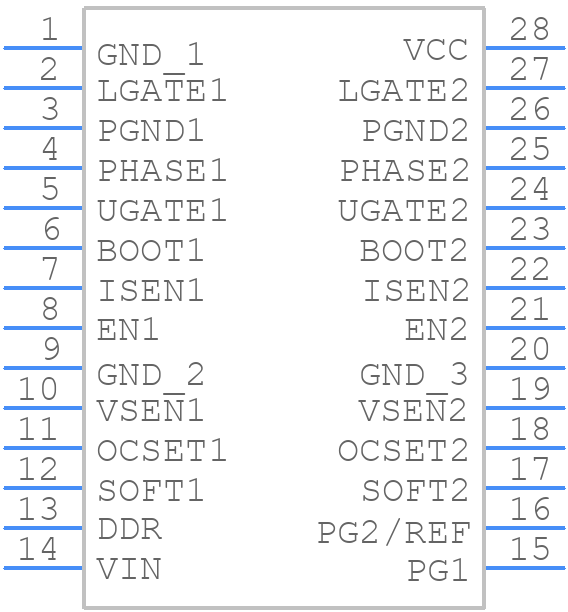

Use the download button to access the ISL6539CAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
