Description:The ISL6539 dual PWM controller delivers high efficiency and tight regulation from two voltage regulating synchronous buck DC/DC converters. It was designed especially for DDR DRAM, SDRAM, graphic chipset applications, and system regulators in high performance applications. Voltage-feed-forward ramp modulation, current mode control, and internal feedback compensation provide fast response to input voltage and output load transients. Input current ripple is minimized by channel-to-channel PWM phase shift of
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
The selection of input and output capacitors depends on the specific requirements of your application. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult with capacitor manufacturers for specific recommendations.
The ISL6539IAZ-T is rated for operation from -40°C to +85°C ambient temperature range. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
Common issues such as output voltage instability or oscillation can be troubleshooted by checking the PCB layout, ensuring proper decoupling, and verifying the component values. It's also recommended to consult the application notes and technical support resources provided by Renesas Electronics Corporation.
For high-power applications, it's recommended to use thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device temperature within the recommended range. The datasheet provides thermal resistance values and thermal management guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6539IAZ-T Overview

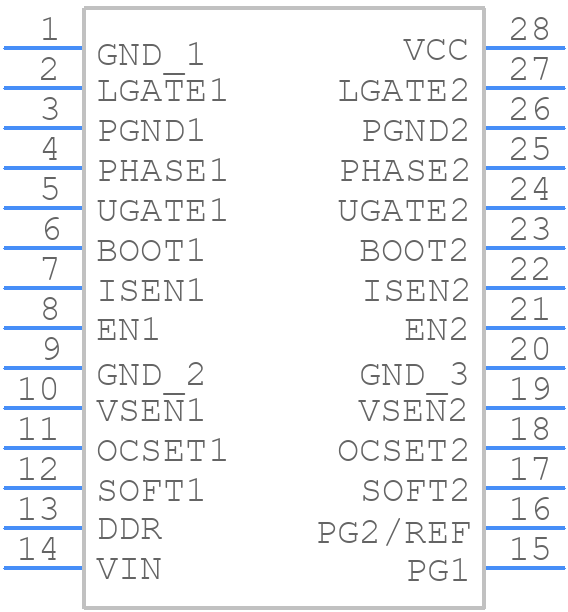

Use the download button to access the ISL6539IAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
