ISL6540ACRZ-T - Renesas Electronics

Description: The ISL6540A is an improved version of the ISL6540 single-phase voltage-mode PWM controller with input voltage feed-forward compensation to maintain a constant loop gain for optimal transient response, especially for applications with a wide input voltage range. Its integrated high speed synchronous rectified MOSFET drivers and other sophisticated features provide complete control and protection for a DC/DC converter with minimum external components, resulting in minimum cost and less engineering design eff

Download ISL6540ACRZ-T Model
Schematic

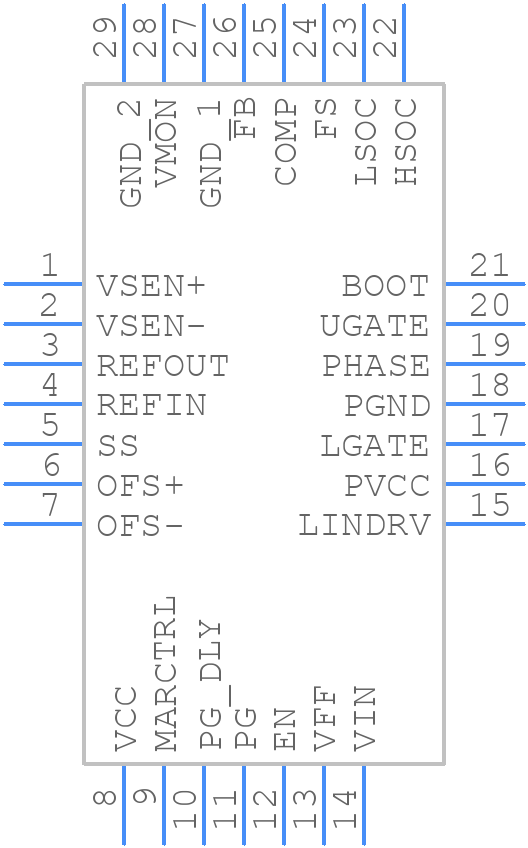

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6540ACRZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 Ld 5x5 QFN_1
click to zoom
3D Models
ISL6540ACRZ-T - Renesas Electronics  - 3D model - Quad Flat No-Lead - 28 Ld 5x5 QFN_1
click to zoom

ISL6540ACRZ-T Details

  • Manufacturer Part Number:

    ISL6540ACRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    L28.5X5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL6540ACRZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL6540ACRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be decoupled with a capacitor, and the input voltage should be filtered with a capacitor and a resistor. It's also crucial to ensure that the device is operated within its recommended operating conditions.
  • The ISL6540ACRZ-T has an operating ambient temperature range of -40°C to +85°C. However, the device can be operated at a higher temperature range with derating. It's essential to consult the datasheet for more information on temperature derating.
  • Yes, the ISL6540ACRZ-T is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to various industry standards, including AEC-Q100. However, it's essential to consult the datasheet and application notes for more information on using the device in high-reliability applications.
  • To troubleshoot issues with the ISL6540ACRZ-T, start by verifying that the device is properly powered and that the input and output voltages are within the recommended range. Check the PCB layout and component values to ensure they meet the recommended guidelines. Use an oscilloscope to measure the input and output waveforms and verify that they are within the expected range. Consult the datasheet and application notes for more information on troubleshooting.
