Description:The ISL6540A is an improved version of the ISL6540 single-phase voltage-mode PWM controller with input voltage feed-forward compensation to maintain a constant loop gain for optimal transient response, especially for applications with a wide input voltage range. Its integrated high speed synchronous rectified MOSFET drivers and other sophisticated features provide complete control and protection for a DC/DC converter with minimum external components, resulting in minimum cost and less engineering design eff
A good PCB layout for the ISL6540AIRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to reduce noise and improve stability.
The ISL6540AIRZ-T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Yes, the ISL6540AIRZ-T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and has a high MTBF (Mean Time Between Failures) rating, making it suitable for demanding applications. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and qualifications for your application.
To troubleshoot issues with the ISL6540AIRZ-T, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Renesas Electronics Corporation for support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6540AIRZ-T Overview

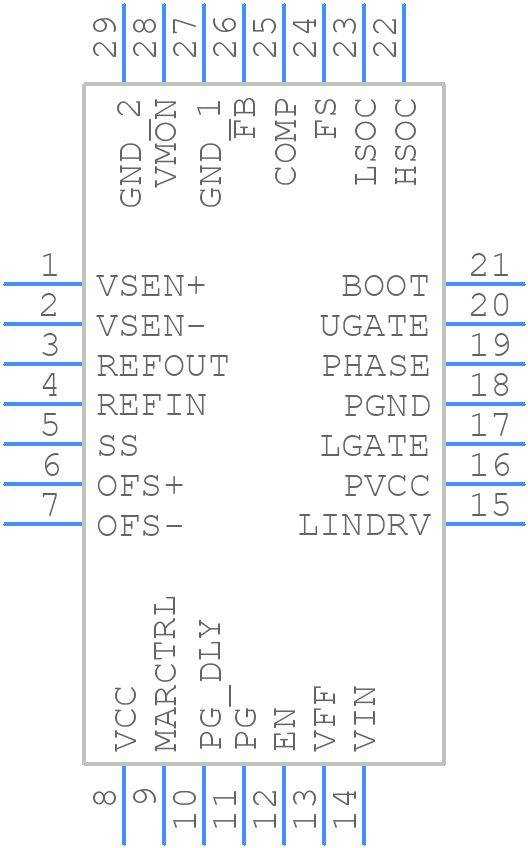

Use the download button to access the ISL6540AIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
