Description:The ISL6540A is an improved version of the ISL6540 single-phase voltage-mode PWM controller with input voltage feed-forward compensation to maintain a constant loop gain for optimal transient response, especially for applications with a wide input voltage range. Its integrated high speed synchronous rectified MOSFET drivers and other sophisticated features provide complete control and protection for a DC/DC converter with minimum external components, resulting in minimum cost and less engineering design eff
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as output voltage, current, and ripple. Renesas provides guidelines for capacitor selection in the datasheet and application notes, including recommendations for capacitor type, value, and ESR.
The ISL6540AIRZ has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
The ISL6540AIRZ has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The application note AN1995 provides a detailed example of how to implement overcurrent protection.
The recommended input voltage range for the ISL6540AIRZ is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V with reduced performance. It's essential to ensure the input voltage is within the recommended range for optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6540AIRZ Overview

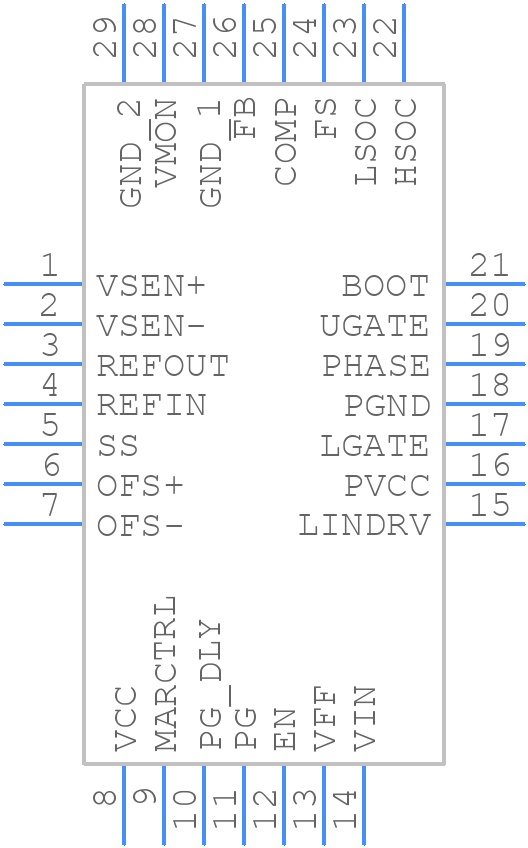

Use the download button to access the ISL6540AIRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
