Description:The ISL6545, ISL6545A makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one IC can be used in a wide variety of applications within a system. The ISL6545, ISL6545A (hereafter referred to as ISL6545x, except as needed) integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 8 Ld SOIC or 1
ALSO ADJUSTABLE OUTPUT FROM 0.6 TO 5.5, ALSO OPERATES ON 12V OR 6.5V TO 14.4V SUPPLY
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
330 kHz
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
ISL6545CBZ-T Frequently Asked Questions (FAQs)
A good PCB layout for the ISL6545CBZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 1uF) in parallel with the main output capacitor.
The ISL6545CBZ-T is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
Yes, the ISL6545CBZ-T is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters and to minimize the risk of failure.
To troubleshoot issues with the ISL6545CBZ-T, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to check for voltage ripple, noise, or oscillations. If the issue persists, consult the datasheet and application notes, and consider contacting Renesas Electronics Corporation's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6545CBZ-T Overview

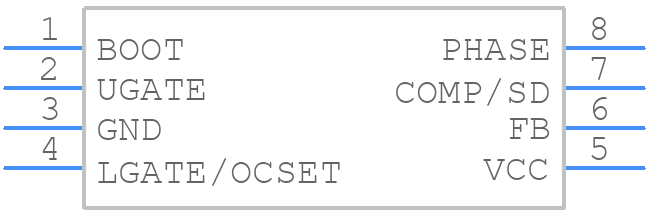

Use the download button to access the ISL6545CBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
