Description:The ISL6545, ISL6545A makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one IC can be used in a wide variety of applications within a system. The ISL6545, ISL6545A (hereafter referred to as ISL6545x, except as needed) integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 8 Ld SOIC or 1
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. Renesas provides a recommended PCB layout in their application notes and evaluation boards.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device. Renesas also provides a biasing calculator tool to help with this process.
When selecting input and output capacitors, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. The datasheet provides guidelines for capacitor selection, and Renesas recommends using low-ESR capacitors with a voltage rating that exceeds the maximum input voltage.
To troubleshoot oscillation or instability, check the PCB layout, component selection, and biasing. Ensure that the device is properly decoupled, and the input and output capacitors are properly selected and placed. Renesas provides troubleshooting guides and application notes that can help identify and resolve common issues.
For high-power applications, thermal management is critical. Ensure that the device is properly heat-sinked, and the PCB is designed to dissipate heat effectively. Renesas provides thermal management guidelines and recommends using thermal interface materials (TIMs) to improve heat transfer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6545CBZ Overview

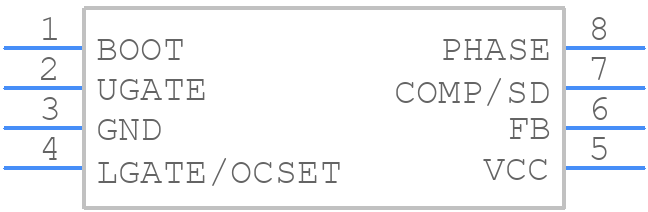

Use the download button to access the ISL6545CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
