Description:The ISL6545, ISL6545A makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one IC can be used in a wide variety of applications within a system. The ISL6545, ISL6545A (hereafter referred to as ISL6545x, except as needed) integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 8 Ld SOIC or 1
A good PCB layout for the ISL6545IBZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure the ISL6545IBZ operates within its SOA during startup and shutdown, it's essential to follow a controlled startup and shutdown sequence. This can be achieved by using a soft-start circuit or a voltage supervisor to control the input voltage ramp-up and ramp-down rates, and to ensure that the output voltage is within the specified range before enabling the load.
The ISL6545IBZ has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation in high-temperature environments, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to follow proper PCB layout and thermal design guidelines. Additionally, it's recommended to derate the output current and voltage according to the ambient temperature to prevent overheating.
To troubleshoot and debug issues with the ISL6545IBZ, it's essential to use a systematic approach, starting with a visual inspection of the PCB and components, followed by measurement of the input and output voltages, currents, and temperatures. Use of an oscilloscope and a logic analyzer can help identify issues such as oscillations or instability. Additionally, it's recommended to consult the datasheet and application notes for troubleshooting guidelines and to verify that the design meets the recommended operating conditions.
To ensure EMI and EMC compliance with regulatory requirements, it's essential to follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, it's recommended to use a common-mode choke and a differential-mode filter to reduce EMI emissions, and to follow the guidelines outlined in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6545IBZ Overview

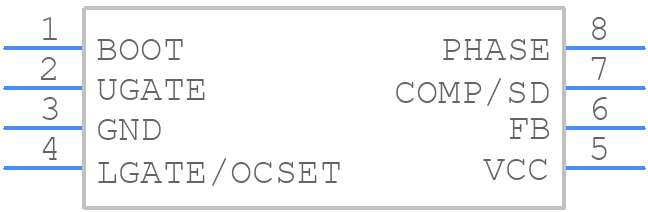

Use the download button to access the ISL6545IBZ schematic symbol, PCB footprint, and 3D model.
