Description:The ISL6558 is a multi-phase PWM controller, which in combination with the HIP6601B, HIP6602B, HIP6603B, or ISL6605 companion gate drivers form a complete solution for high-current, high slew-rate applications. The ISL6558 regulates output voltage, balances load currents and provides protective functions for two to four synchronous rectified buck converter channels. A novel approach to current sensing is used to reduce overall solution cost and improve efficiency. The voltage developed across the lower MOSF
A good PCB layout for the ISL6558CBZA involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to reduce noise and improve stability.
The ISL6558CBZA can operate in ambient temperatures up to 85°C, but it's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation.
Yes, the ISL6558CBZA is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and has a high MTBF (Mean Time Between Failures) rating. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and qualifications.
To troubleshoot issues with the ISL6558CBZA, start by checking the input and output voltage levels, as well as the current drawn from the input. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the input and output pins. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Renesas Electronics Corporation for further support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6558CBZA Overview

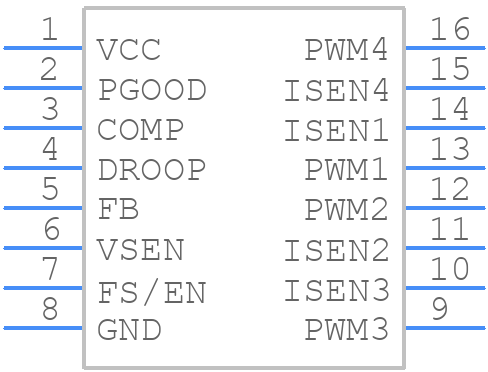

Use the download button to access the ISL6558CBZA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
