Description:The ISL6558 is a multi-phase PWM controller, which in combination with the HIP6601B, HIP6602B, HIP6603B, or ISL6605 companion gate drivers form a complete solution for high-current, high slew-rate applications. The ISL6558 regulates output voltage, balances load currents and provides protective functions for two to four synchronous rectified buck converter channels. A novel approach to current sensing is used to reduce overall solution cost and improve efficiency. The voltage developed across the lower MOSF
A good PCB layout for the ISL6558IRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors to reduce noise and improve stability.
The ISL6558IRZ-T has an operating ambient temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
Yes, the ISL6558IRZ-T is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and guidelines for these applications.
To troubleshoot issues with the ISL6558IRZ-T, start by checking the input and output voltages, as well as the device's operating temperature. Use an oscilloscope to check for oscillations or noise on the input and output pins. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6558IRZ-T Overview

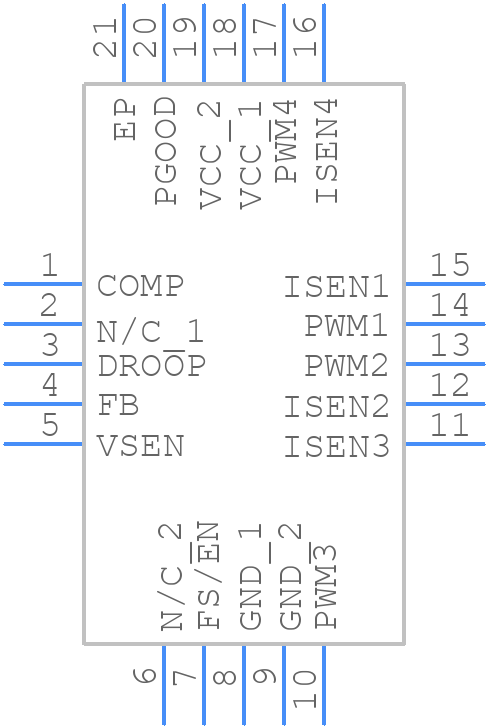

Use the download button to access the ISL6558IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
