ISL6566CRZ footprint, schematic symbol and 3D model by Renesas Electronics

ISL6566CRZ - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The ISL6566 three-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. The integration of power MOSFET drivers into the controller IC marks a departure from the separate PWM controller and driver configuration of previous multiphase product families. By reducing the number of external parts, this integration is optimized for a cost and space saving power management solution. Outstanding featu

Download ISL6566CRZ Model

Schematic
symbols

PCB
footprints

3D
models

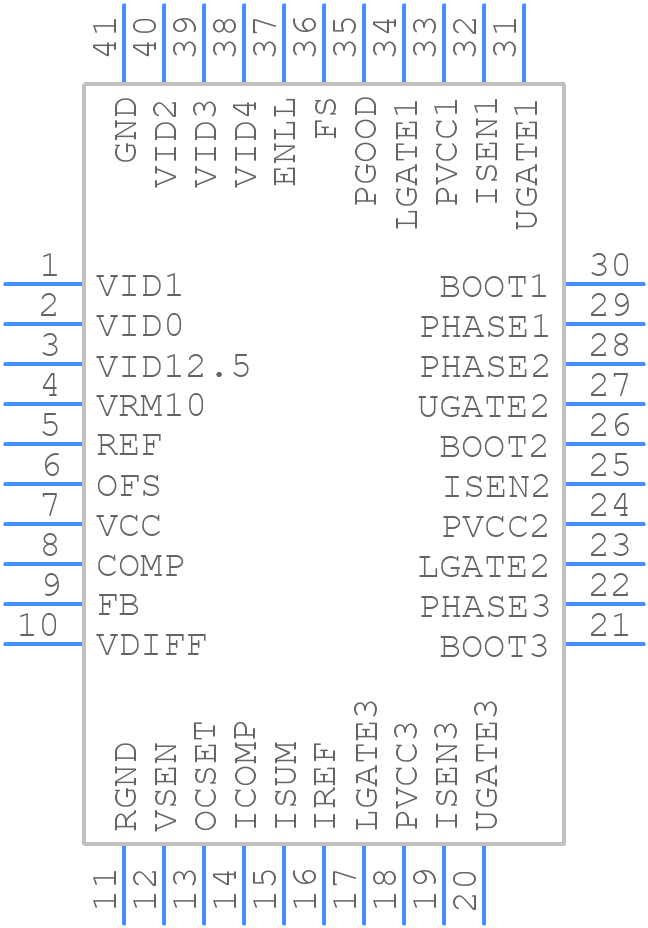

Symbol

click to zoom

PCB Footprints

ISL6566CRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L40.6x6 1

click to zoom

3D Models

ISL6566CRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L40.6x6 1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL6566CRZ
Part Number ISL6566CRZ
Manufacturer Renesas Electronics
Pin Count 41
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L40.6x6 1
Released Date Mar 20, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL6566CRZ Details

Manufacturer Part Number:
ISL6566CRZ
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL6566CRZ Overview

Use the download button to access the ISL6566CRZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL65, or try a keyword search, such as Switching Regulator or Controllers
