Description:The ISL6567 two-phase synchronous buck PWM control IC provides a precision voltage regulation system for point-of-load and other high-current applications requiring an efficient and compact implementation. Multi-phase power conversion is a marked departure from single phase converter configurations employed to satisfy the increasing current demands of various electronic circuits. By distributing the power and load current, implementation of multi-phase converters utilize smaller and lower cost transistors w
The recommended PCB layout for the ISL6567IRZ-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's essential to follow the datasheet's guidelines for component placement and routing to minimize noise and EMI.
To select the right external components, you should consider the output voltage, output current, and switching frequency. The datasheet provides guidelines for selecting the inductor, input and output capacitors, and other components. You can also use online tools and calculators to help with the selection process.
The ISL6567IRZ-T has a maximum junction temperature of 150°C. To ensure reliable operation, you should provide adequate heat sinking, use a thermally conductive PCB material, and keep the IC away from heat sources. You should also follow the datasheet's guidelines for thermal design and consider using thermal simulation tools to optimize your design.
To troubleshoot common issues with the ISL6567IRZ-T, you should first consult the datasheet and application notes. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and other measurement tools to identify the root cause of the issue. You can also consult with Renesas' technical support team or online forums for guidance.
Yes, the ISL6567IRZ-T is a switching regulator that can generate EMI. To ensure compliance with regulatory standards, you should follow the datasheet's guidelines for EMI reduction, such as using a shielded inductor, adding EMI filters, and optimizing the PCB layout. You should also consult with regulatory experts and perform EMI testing to ensure compliance with standards such as CISPR and FCC.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6567IRZ-T Overview

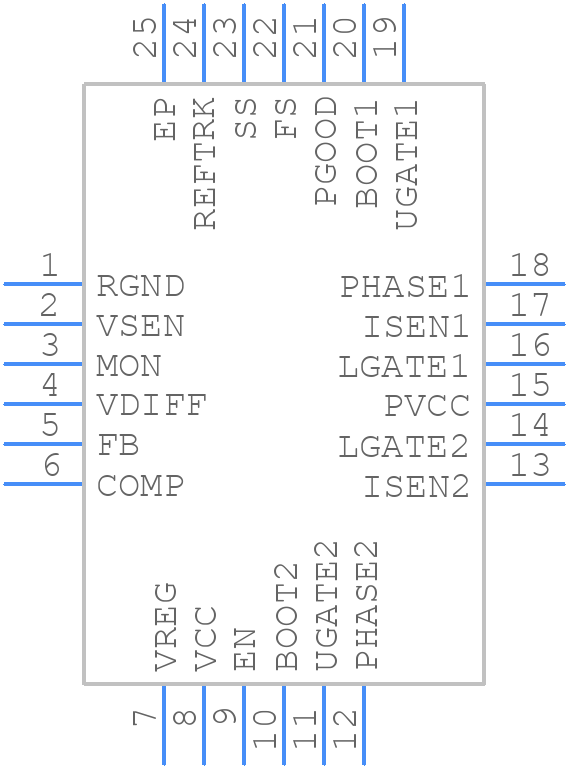

Use the download button to access the ISL6567IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
