Description:The ISL6567 two-phase synchronous buck PWM control IC provides a precision voltage regulation system for point-of-load and other high-current applications requiring an efficient and compact implementation. Multi-phase power conversion is a marked departure from single phase converter configurations employed to satisfy the increasing current demands of various electronic circuits. By distributing the power and load current, implementation of multi-phase converters utilize smaller and lower cost transistors w
The recommended layout and placement for the ISL6567IRZ can be found in the application note AN1131 from Renesas Electronics Corporation. It provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
The selection of output filter components (L, C, and R) depends on the specific application requirements, such as output voltage, current, and ripple. Renesas provides a design tool, the PowerCompass, which can help engineers select the optimal components for their design. Additionally, the datasheet provides guidelines for component selection and calculation.
The maximum junction temperature (Tj) for the ISL6567IRZ is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance. The thermal management section in the datasheet provides guidelines for calculating the junction temperature and thermal resistance.
Yes, the ISL6567IRZ can be used in a synchronous rectification configuration. The datasheet provides information on how to configure the device for synchronous rectification, including the recommended component values and layout considerations.
Renesas provides a troubleshooting guide, AN1132, which covers common issues and their solutions. Additionally, the datasheet provides information on the device's internal protection features and fault detection mechanisms. Engineers can also contact Renesas' technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6567IRZ Overview

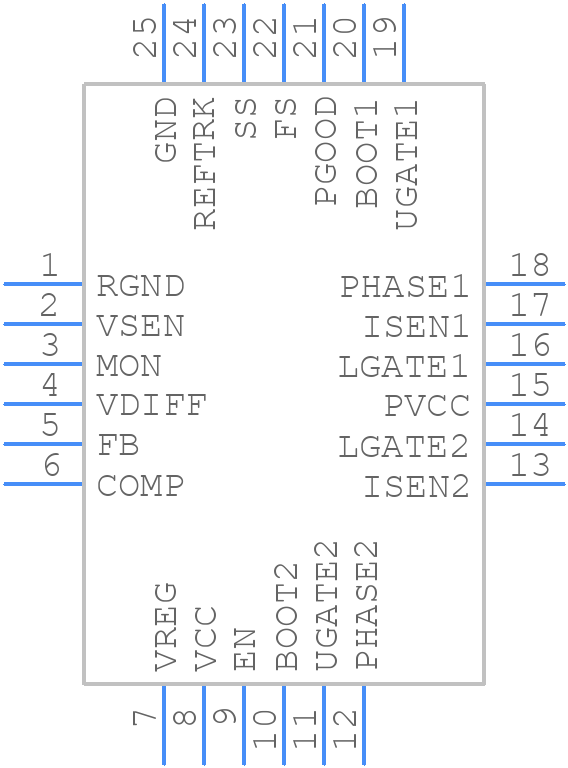

Use the download button to access the ISL6567IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as Switching Regulator or Controllers
