Description:The ISL6596 is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronous buck converter topology. This driver combined with Intersil's Multi-Phase Buck PWM controllers forms a complete singlestage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors. The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance and high switching frequency appl
The recommended PCB layout for the ISL6596CRZ involves placing the IC close to the input capacitors, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX and SW nodes) away from sensitive analog nodes. Additionally, it's essential to minimize the loop area of the switching nodes to reduce EMI.
When selecting input and output capacitors for the ISL6596CRZ, consider the voltage rating, capacitance value, and ESR (Equivalent Series Resistance). For input capacitors, choose a capacitor with a voltage rating higher than the maximum input voltage and a capacitance value that meets the recommended value in the datasheet. For output capacitors, select a capacitor with a voltage rating higher than the output voltage and a low ESR to minimize voltage ripple.
The ISL6596CRZ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
To troubleshoot issues with the ISL6596CRZ, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and adequate heat dissipation. Use an oscilloscope to monitor the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Yes, the ISL6596CRZ can be used in a synchronous rectification configuration. The device's internal synchronous rectifier (SR) can be enabled by connecting the SR pin to a suitable voltage source. This configuration can improve efficiency and reduce power losses. However, ensure that the SR pin is properly biased and the device is operated within the recommended specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6596CRZ Overview

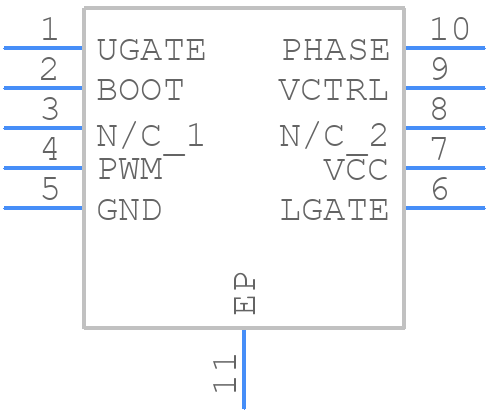

Use the download button to access the ISL6596CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL65,
or try a keyword search, such as MOSFET Drivers
