Description:The ISL6596 is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronous buck converter topology. This driver combined with Intersil's Multi-Phase Buck PWM controllers forms a complete singlestage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors. The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance and high switching frequency appl
A good PCB layout for the ISL6596IRZ involves separating the power and signal grounds, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, the layout should minimize the loop area of the high-frequency currents to reduce electromagnetic interference (EMI).
The choice of input and output capacitors for the ISL6596IRZ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10-22uF and a voltage rating of 1.5-2 times the input/output voltage.
The ISL6596IRZ has an operating ambient temperature range of -40°C to +85°C. However, the maximum junction temperature (TJ) should not exceed 125°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The ISL6596IRZ has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by adjusting the resistor values. Additionally, an external current sense resistor can be used to monitor the output current and trigger the OCP feature.
The recommended input voltage range for the ISL6596IRZ is 4.5V to 14V. However, the device can operate with input voltages as low as 3.3V, but with reduced performance and efficiency. It's essential to ensure the input voltage is within the recommended range to ensure proper operation and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6596IRZ Overview

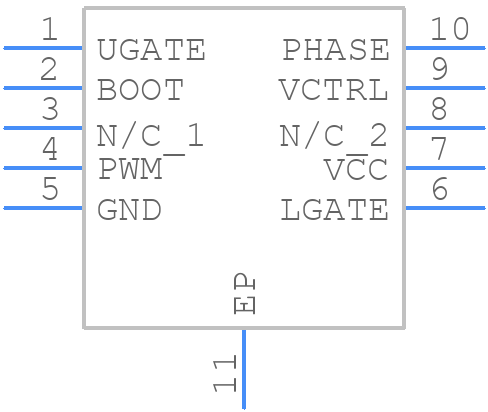

Use the download button to access the ISL6596IRZ schematic symbol, PCB footprint, and 3D model.
