Description:The ISL6609, ISL6609A is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. This driver combined with an Intersil ISL63xx or ISL65xx multiphase PWM controller forms a complete single-stage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors. The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance
Renesas provides a recommended PCB layout guide in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet and application notes for capacitor selection.
The ISL6609AIRZ-T has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Renesas provides a troubleshooting guide in the application note AN1965, which includes steps to identify and resolve common issues, such as oscillation, instability, or overvoltage protection. Additionally, engineers can use simulation tools and Spice models to simulate the circuit and identify potential issues.
The ISL6609AIRZ-T is a commercial-grade device, but Renesas offers a range of high-reliability and aerospace-grade devices, such as the ISL6609AHRZ-T, which meets the requirements of high-reliability and aerospace applications. Engineers should consult with Renesas or a qualified distributor to determine the suitability of the device for their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6609AIRZ-T Overview

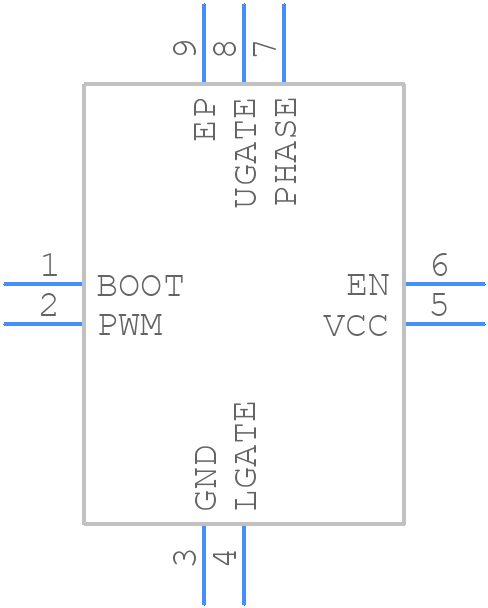

Use the download button to access the ISL6609AIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
