ISL6609AIRZ - Renesas Electronics

Description: The ISL6609, ISL6609A is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. This driver combined with an Intersil ISL63xx or ISL65xx multiphase PWM controller forms a complete single-stage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors. The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance

Download ISL6609AIRZ Model

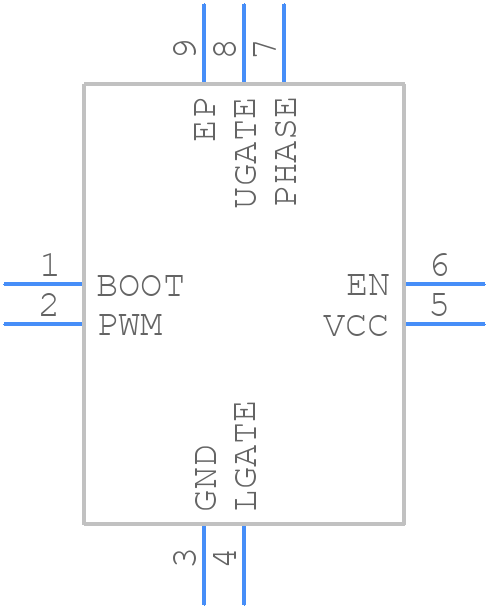

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6609AIRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (8 LD QFN-
click to zoom
3D Models
ISL6609AIRZ - Renesas Electronics  - 3D model - Quad Flat No-Lead - (8 LD QFN-
click to zoom

ISL6609AIRZ Details

  • Manufacturer Part Number:

    ISL6609AIRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.025 µs

  • Turn-on Time:

    0.023 µs

  • Width:

    3 mm

ISL6609AIRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL6609AIRZ involves keeping the high-frequency switching nodes (e.g., SW node) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the traces connecting the IC to the input and output capacitors. Renesas provides a recommended PCB layout in the application note AN1443.
  • To ensure the ISL6609AIRZ operates within its SOA, monitor the input voltage, output current, and junction temperature. The datasheet provides guidelines for these parameters. Additionally, use the thermal resistance (RθJA) and junction-to-ambient thermal resistance (RθJC) values to estimate the junction temperature. You can also use thermal simulation tools to model the thermal performance of your design.
  • The recommended input capacitor type is a low-ESR ceramic capacitor with a value between 10uF to 22uF. The exact value depends on the input voltage ripple and noise requirements of your application. A higher value capacitor can help reduce input voltage ripple, but may increase the startup time and inrush current.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of noise coupling or resonance. Verify that the input and output capacitors are properly selected and placed. Ensure that the feedback network is properly compensated and that the loop gain is sufficient. You can also use a scope to measure the switching node voltage and current waveforms to identify any signs of oscillation or instability.
  • The maximum allowed output voltage deviation for the ISL6609AIRZ is ±10% of the nominal output voltage. Exceeding this deviation can cause the IC to malfunction or enter an overvoltage protection state. You can use the output voltage sense pin (VSENSE) to monitor the output voltage and implement additional voltage regulation or protection mechanisms if needed.
