Description:The ISL6609, ISL6609A is a high frequency, MOSFET driver optimized to drive two N-Channel power MOSFETs in a synchronous-rectified buck converter topology. This driver combined with an Intersil ISL63xx or ISL65xx multiphase PWM controller forms a complete single-stage core-voltage regulator solution with high efficiency performance at high switching frequency for advanced microprocessors. The IC is biased by a single low voltage supply (5V), minimizing driver switching losses in high MOSFET gate capacitance
A good PCB layout for the ISL6609IRZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output voltages with ceramic capacitors. If oscillation is still observed, try adding a small resistor (e.g. 1-10 ohms) in series with the output capacitor to dampen the oscillation.
The maximum allowed input voltage ripple for the ISL6609IRZ is not explicitly stated in the datasheet, but as a general rule of thumb, it's recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation. Excessive input voltage ripple can cause the device to malfunction or even fail.
The ISL6609IRZ is rated for operation up to 125°C, but it's essential to consider the derating of the device's performance and reliability at high temperatures. Ensure that the device is properly heatsinked and that the maximum junction temperature (Tj) is not exceeded. Additionally, consult the datasheet and application notes for guidance on high-temperature operation.
To troubleshoot issues with the ISL6609IRZ, start by verifying the input voltage, output voltage, and component values. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to observe the input and output waveforms, and ensure that the device is properly configured and biased. Consult the datasheet, application notes, and online resources for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6609IRZ Overview

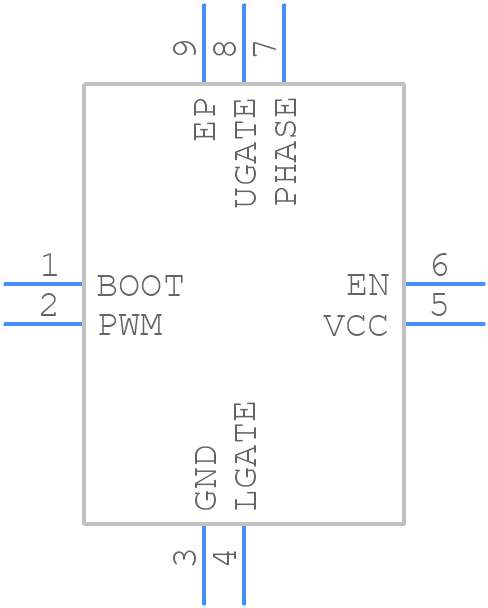

Use the download button to access the ISL6609IRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
