Description:The ISL6612A and ISL6613A are high frequency MOSFET drivers specifically designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. These drivers combined with HIP63xx or ISL65xx Multi-Phase Buck PWM controllers and N-Channel MOSFETs form complete core-voltage regulator solutions for advanced microprocessors. The ISL6612A drives the upper gate to 12V, while the lower gate can be independently driven over a range from 5V to 12V. The ISL6613A drives both uppe
The recommended PCB layout for the ISL6612AIBZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
The selection of input and output capacitors for the ISL6612AIBZ depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
The maximum operating temperature range for the ISL6612AIBZ is -40°C to +125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
To troubleshoot common issues with the ISL6612AIBZ, it's recommended to follow a systematic approach. First, check the input voltage and current to ensure they are within the recommended range. Next, check the output voltage and current to ensure they are within the recommended range. If the issue persists, check the fault flags and error codes to determine the cause of the fault. Finally, consult the datasheet and application notes for troubleshooting guidelines and recommendations.
Yes, the ISL6612AIBZ is suitable for high-reliability and high-availability applications. The device is designed to meet the requirements of automotive and industrial applications, and it has undergone rigorous testing and qualification to ensure its reliability and performance. However, it's recommended to follow proper design and manufacturing practices, such as using a robust PCB design, selecting high-quality components, and implementing adequate thermal management and EMI shielding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6612AIBZ Overview

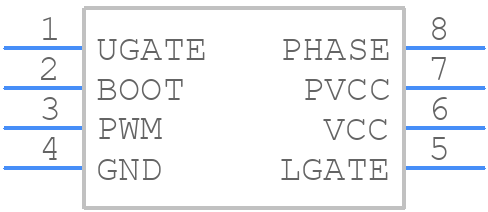

Use the download button to access the ISL6612AIBZ schematic symbol, PCB footprint, and 3D model.
