ISL6615AIBZ - Renesas Electronics

Description: The ISL6615A is a high-speed MOSFET driver optimized to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. This driver, combined with an Intersil Digital or Analog multiphase PWM controller, forms a complete high frequency and high efficiency voltage regulator. The ISL6615A drives both upper and lower gates over a range of 4. 5V to 13. 2V. This drive-voltage provides the flexibility necessary to optimize applications involving trade-offs between gate charge and

Download ISL6615AIBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

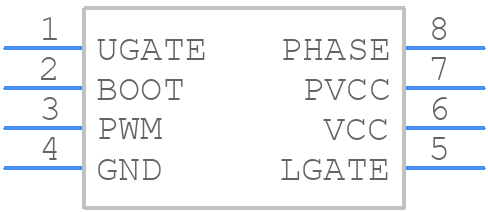

Symbol
ISL6615AIBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6615AIBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL6615AIBZ - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL6615AIBZ Details

  • Manufacturer Part Number:

    ISL6615AIBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    6.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL6615AIBZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6615AIBZ involves placing the device close to the power components, using a solid ground plane, and minimizing the length of the traces between the device and the power components. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
  • The selection of external components for the ISL6615AIBZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. The datasheet provides guidelines for selecting the inductor and output capacitor, and online tools such as the Renesas PowerNavigator software can also be used to aid in the selection process.
  • The maximum operating temperature range for the ISL6615AIBZ is -40°C to +125°C, with a junction temperature (TJ) rating of 150°C. However, the device can be operated at a reduced temperature range depending on the specific application requirements.
  • The ISL6615AIBZ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides guidelines for selecting the values of the resistor and capacitor, and the threshold for overcurrent protection can be adjusted by changing the value of the resistor.
  • Yes, the ISL6615AIBZ can be used in a synchronous buck converter configuration, which can improve efficiency and reduce the size of the output inductor. The datasheet provides guidelines for implementing a synchronous buck converter using the ISL6615AIBZ.
