Description:The ISL6620, ISL6620A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6620, ISL6620A is specifically designed to work with Intersil VR11. 1 controllers and combined with N-Channel MOSFETs, form a complete core-voltage regulator solution for advanced microprocessors. When ISL6620, ISL6620A detects a PSI protocol sent by an Intersil VR11. 1 controller, it activates Diode Emulation (D
The recommended PCB layout for the ISL6620CRZ involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
The selection of input and output capacitors for the ISL6620CRZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. In general, it is recommended to use low-ESR capacitors with a high ripple current rating to ensure stable operation. The datasheet provides guidelines for capacitor selection, and it is recommended to consult with a capacitor manufacturer for specific recommendations.
The maximum operating temperature range for the ISL6620CRZ is -40°C to +125°C, with a junction temperature rating of 150°C. However, it is recommended to derate the device's performance at high temperatures to ensure reliable operation.
To troubleshoot issues with the ISL6620CRZ, it is recommended to check the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed, and that the device is properly soldered to the PCB. Additionally, check the input and output voltage levels, and ensure that the device is operating within its recommended specifications. If the issue persists, consult with a Renesas Electronics Corporation application engineer for further assistance.
Yes, the ISL6620CRZ can be used in a synchronous buck converter configuration. The device's internal synchronous rectifier can be used to improve efficiency and reduce power losses. However, it is recommended to consult with a Renesas Electronics Corporation application engineer to ensure that the device is properly configured and optimized for the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6620CRZ Overview

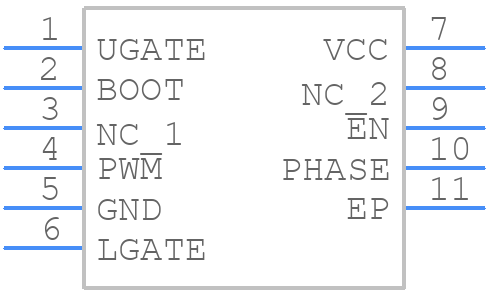

Use the download button to access the ISL6620CRZ schematic symbol, PCB footprint, and 3D model.
