ISL6622AIRZ-T - Renesas Electronics

Description: The ISL6622A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6622A is specifically designed to work with Intersil VR11. 1 controllers and combined with N-Channel MOSFETs, form a complete core-voltage regulator solution for advanced microprocessors. When ISL6622A detects a PSI protocol sent by an Intersil VR11. 1 controller, it activates Diode Emulation (DE) operation; otherwise, it

Download ISL6622AIRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

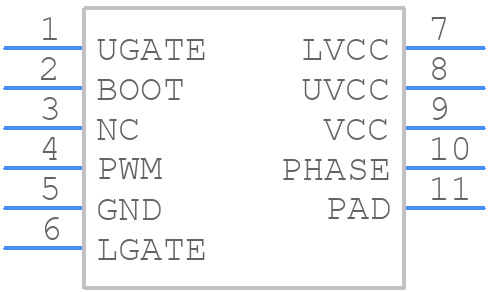

ISL6622AIRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6622AIRZ-T - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL6622AIRZ-T - Renesas Electronics - 3D model - Other - L10.3x3
click to zoom

ISL6622AIRZ-T Details

  • Manufacturer Part Number:

    ISL6622AIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    6.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.01 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3 mm

ISL6622AIRZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The application note AN1965 provides more detailed guidance on capacitor selection.
  • The ISL6622AIRZ-T has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • The ISL6622AIRZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The application note AN1965 provides a detailed example of how to implement overcurrent protection.
  • The recommended input voltage range for the ISL6622AIRZ-T is 4.5V to 14V, but the device can operate with input voltages as low as 3.3V and as high as 15V. However, the output voltage and current ratings may be affected at these extremes.
