Description:The ISL6622 is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6622 is specifically designed to work with Intersil VR11. 1 controllers and combined with N-Channel MOSFETs, form a complete core-voltage regulator solution for advanced microprocessors. When ISL6622 detects a PSI protocol sent by an Intersil VR11. 1 controller, it activates Diode Emulation (DE) and Gate Voltage Optimizati
The recommended PCB layout for the ISL6622CBZ involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
The selection of input and output capacitors for the ISL6622CBZ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage ripple, while the output capacitor should be able to handle the output voltage ripple and provide sufficient filtering. A minimum capacitance of 10uF is recommended for both input and output capacitors.
The maximum operating temperature range for the ISL6622CBZ is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
To troubleshoot issues with the ISL6622CBZ, it is recommended to check the input and output voltage levels, the output current, and the device's temperature. Ensure that the input voltage is within the recommended range, and that the output current is within the device's rating. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Also, verify that the PCB layout and component selection meet the recommended guidelines.
Yes, the ISL6622CBZ is suitable for high-reliability and high-availability applications. The device is designed to provide high reliability and fault tolerance, with features such as overvoltage protection, undervoltage protection, and thermal shutdown. However, it is recommended to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6622CBZ Overview

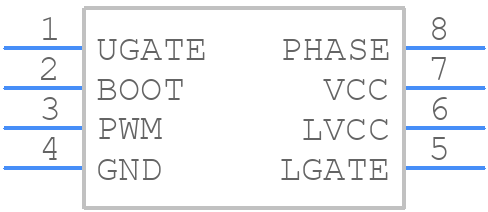

Use the download button to access the ISL6622CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
