ISL6625AIRZ-T - Renesas Electronics

Description: The ISL6625A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. In ISL6625A, the upper and lower gates are both driven to an externally applied voltage. This provides the capability to optimize applications involving trade-offs between gate charge and conduction losses. An advanced adaptive shoot-through protection is integrated to prevent both the upper and lower MOSFETs from conducting simultaneously and to minimi

Download ISL6625AIRZ-T Model

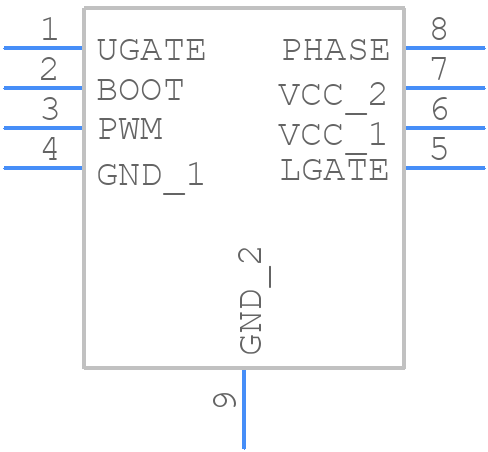

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6625AIRZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom
3D Models
ISL6625AIRZ-T - Renesas Electronics  - 3D model - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom

ISL6625AIRZ-T Details

  • Manufacturer Part Number:

    ISL6625AIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2D

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    36 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.023 µs

  • Turn-on Time:

    0.038 µs

  • Width:

    2 mm

ISL6625AIRZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL6625AIRZ-T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance and 22uF output capacitance is recommended.
  • The maximum ambient temperature range for the ISL6625AIRZ-T is -40°C to +85°C. However, the junction temperature should not exceed 125°C.
  • Yes, the ISL6625AIRZ-T is suitable for synchronous buck converter designs. It has a built-in synchronous rectifier driver that can be used to drive an external N-channel MOSFET.
  • The maximum output current of the ISL6625AIRZ-T can be calculated using the formula: Iout_max = (Vin - Vout) / (Rds(on) x L x fsw), where Vin is the input voltage, Vout is the output voltage, Rds(on) is the on-resistance of the high-side FET, L is the inductor value, and fsw is the switching frequency.
