ISL6627CRZ - Renesas Electronics

Description: The ISL6627 is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6627 is specifically designed to work with Intersil VR11. 1, VR12 controllers and combined with N-Channel MOSFETs to form a complete core-voltage regulator solution for advanced microprocessors. When ISL6627 detects a PSI protocol sent by an Intersil VR11. 1, VR12 controller, it activates Diode Emulation (DE) operation; ot

Download ISL6627CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

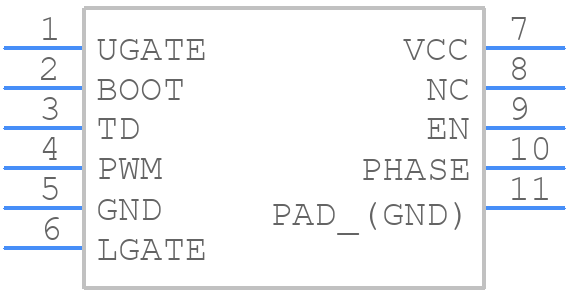

ISL6627CRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6627CRZ - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL6627CRZ - Renesas Electronics - 3D model - Other - L10.3x3
click to zoom

ISL6627CRZ Details

  • Manufacturer Part Number:

    ISL6627CRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6627CRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet and application notes.
  • The ISL6627CRZ has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating.
  • Renesas provides troubleshooting guidelines in the application note AN1995, which includes steps to identify and resolve common issues, such as oscillation, instability, or overvoltage protection. Additionally, engineers can use simulation tools and Spice models to analyze and debug their designs.
  • Yes, the ISL6627CRZ is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and other industry standards. However, engineers should ensure that their design meets the specific requirements of their application, including environmental and reliability testing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL6627CRZ Overview

Use the download button to access the ISL6627CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66, or try a keyword search, such as MOSFET Drivers
